• 100 mm Self-Centering Precision:
This high-quality 100 mm (4") diameter chuck features a self-centering mechanism. All three jaws move simultaneously, ensuring fast and accurate centering of round workpieces.

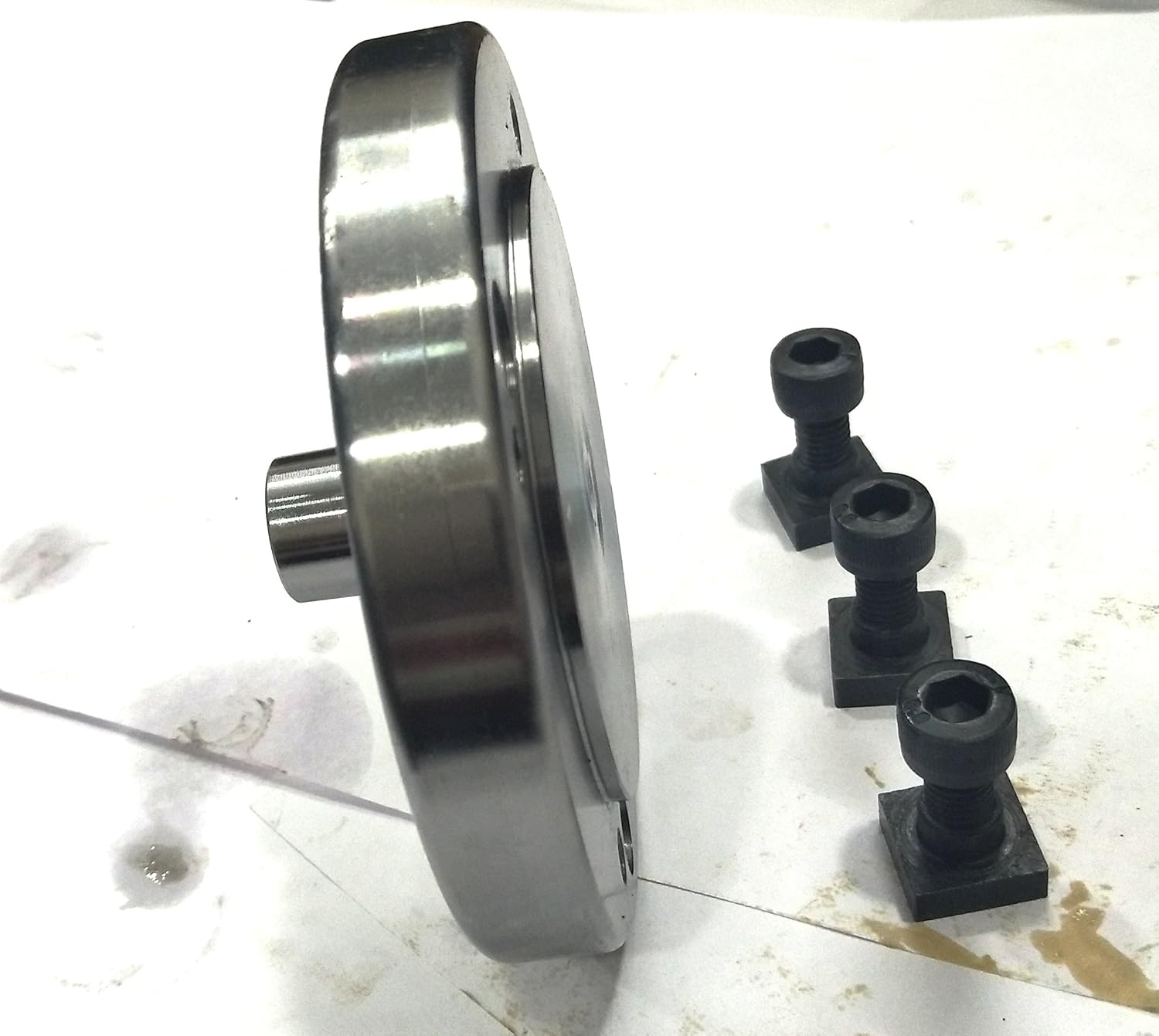

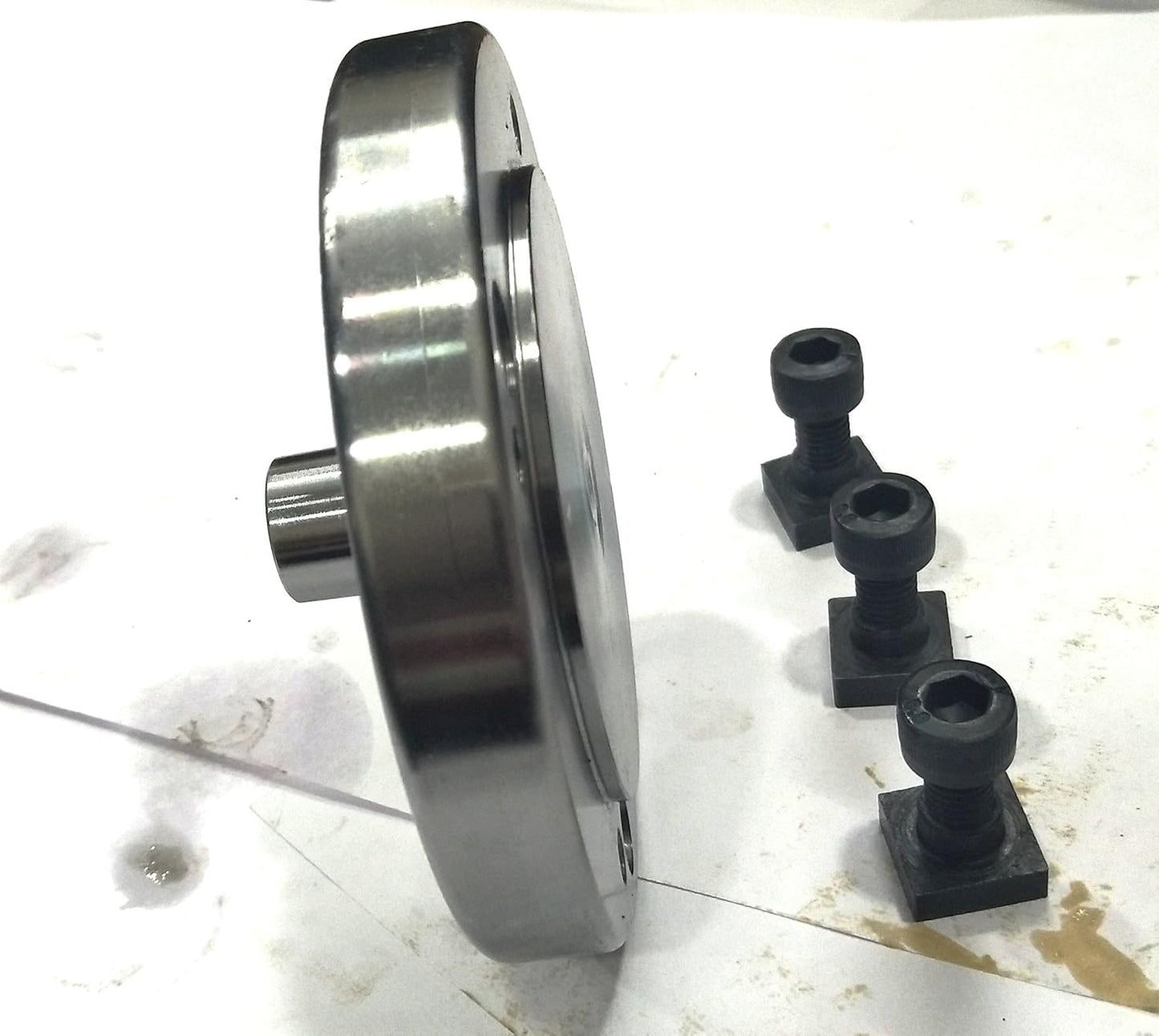

• MT2 Spigot Back Plate:
A key feature of this model is its back plate with an MT2 extension spigot. The spigot fits perfectly into the MT2 bore of a rotary table, providing precise center alignment and improved machining accuracy during setup.
• Universal Mounting (3 & 4 Slots):
The back plate is precision-drilled to fit both 3-slot and 4-slot rotary tables, making it compatible with most standard rotary tables available in the market.
• Premium Build Quality:
The chuck body is made from heavy-duty cast iron, which absorbs vibrations, while the jaws are constructed from hardened tool steel to maintain strong grip and durability over long periods of use.

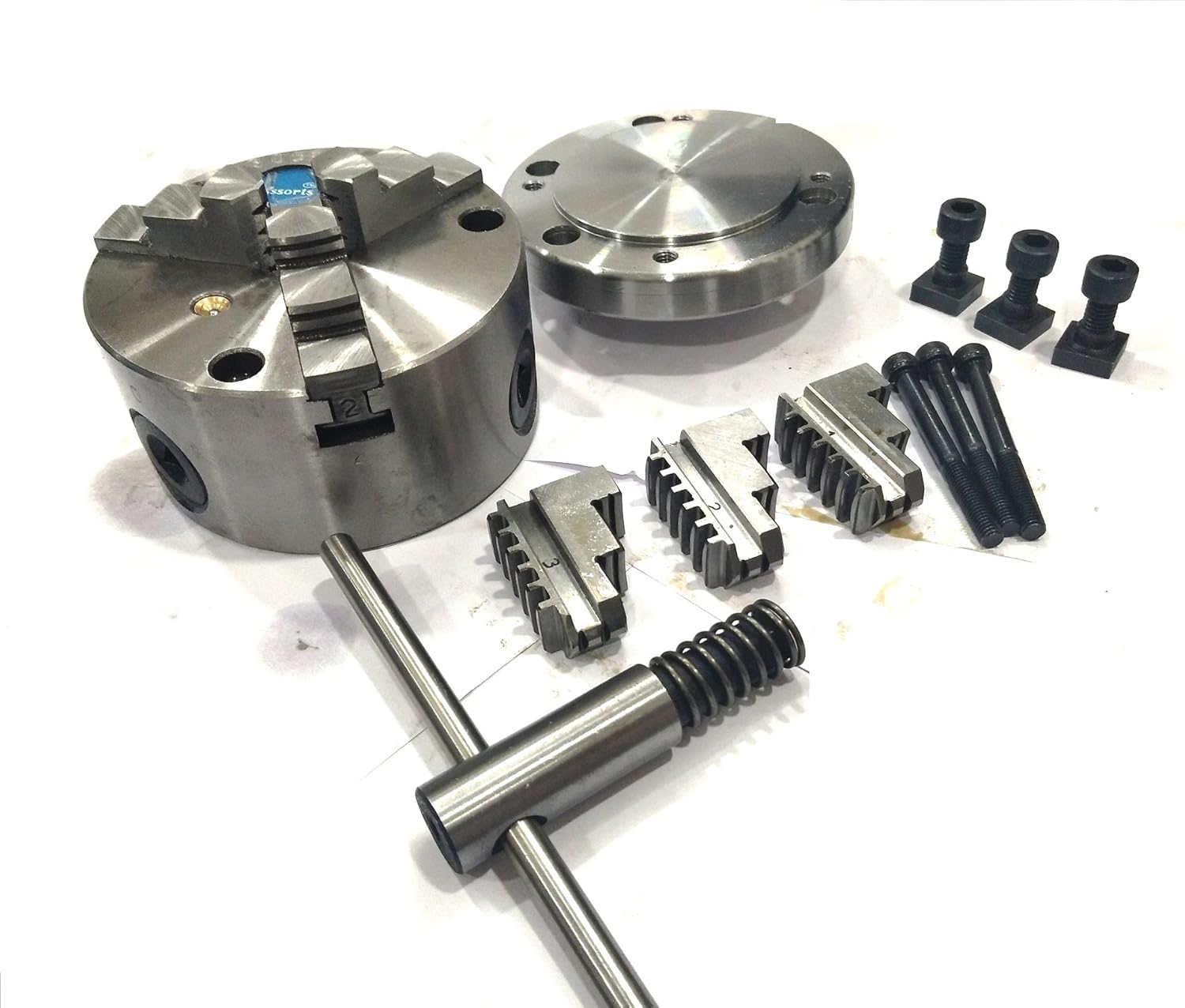

• Reversible Jaws Included:
The chuck comes with a full set of reversible jaws, allowing both internal (inside) and external (outside) clamping of workpieces.
• Safety Spring-Loaded Key:
The package includes a self-ejecting spring-loaded chuck key, a safety feature designed to prevent accidents by ensuring the key does not remain in the chuck during operation.

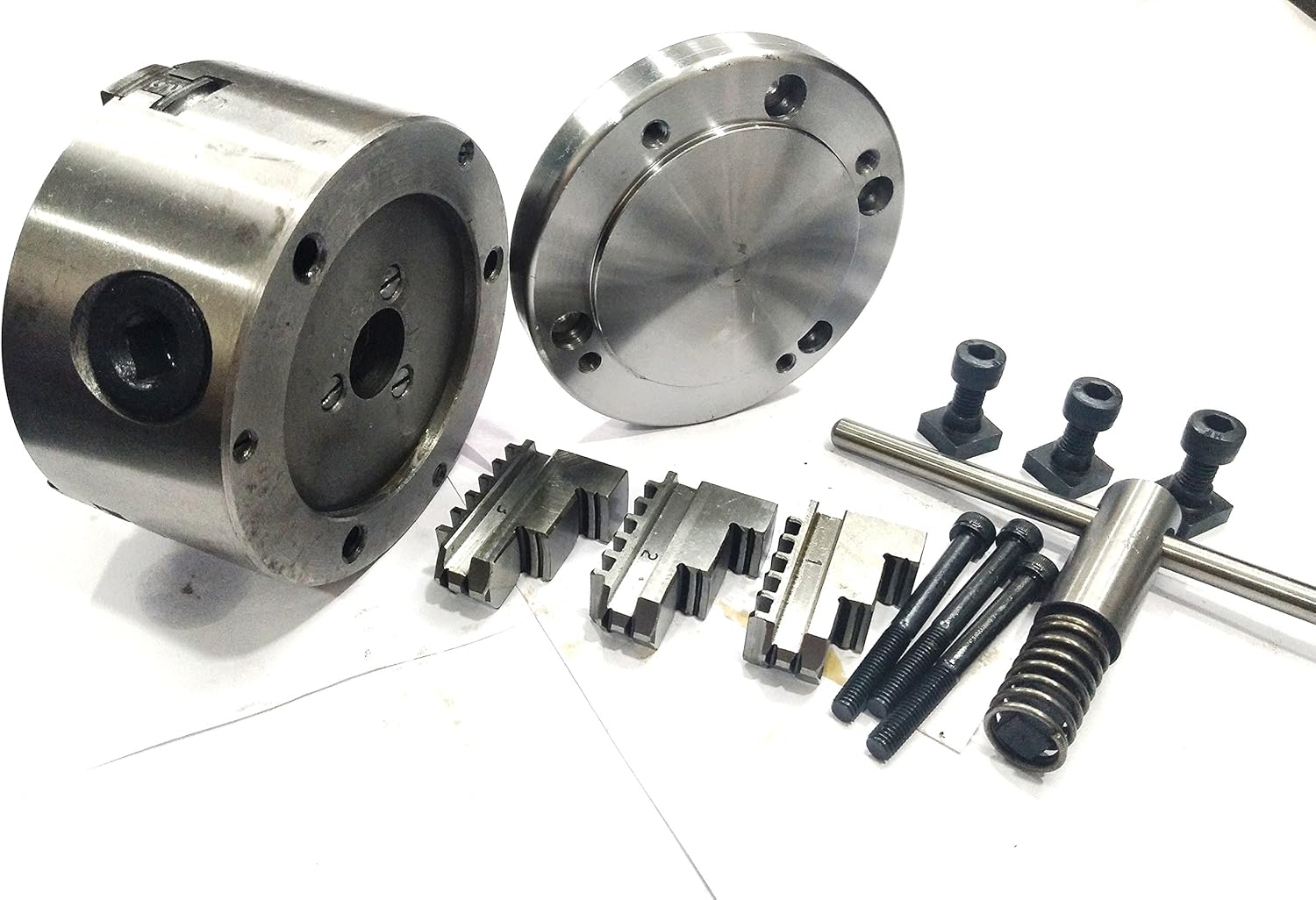

• Complete Installation Kit:
The set includes a steel back plate and 3 sets of T-nuts, allowing quick and easy installation on rotary tables with different slot sizes.
