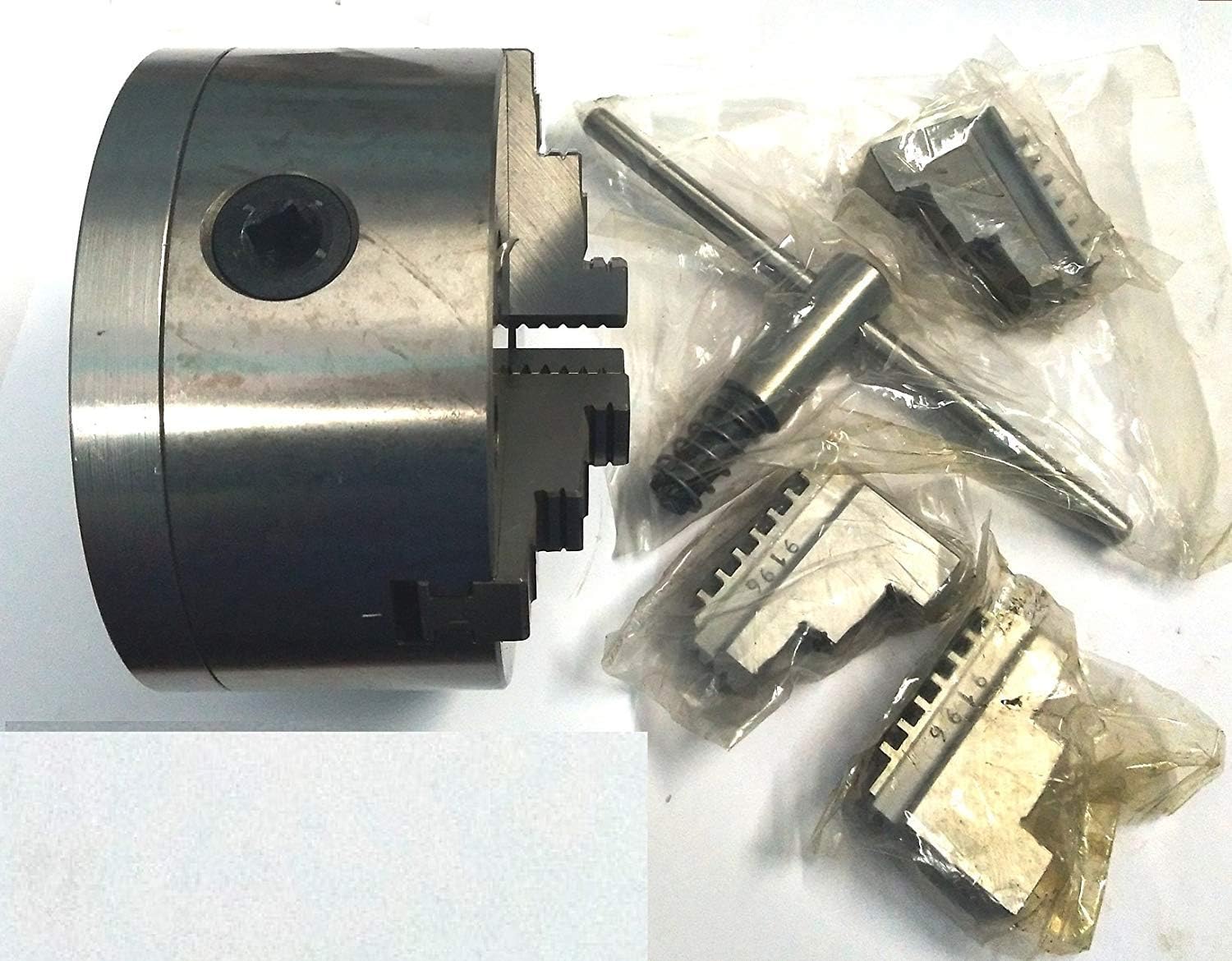

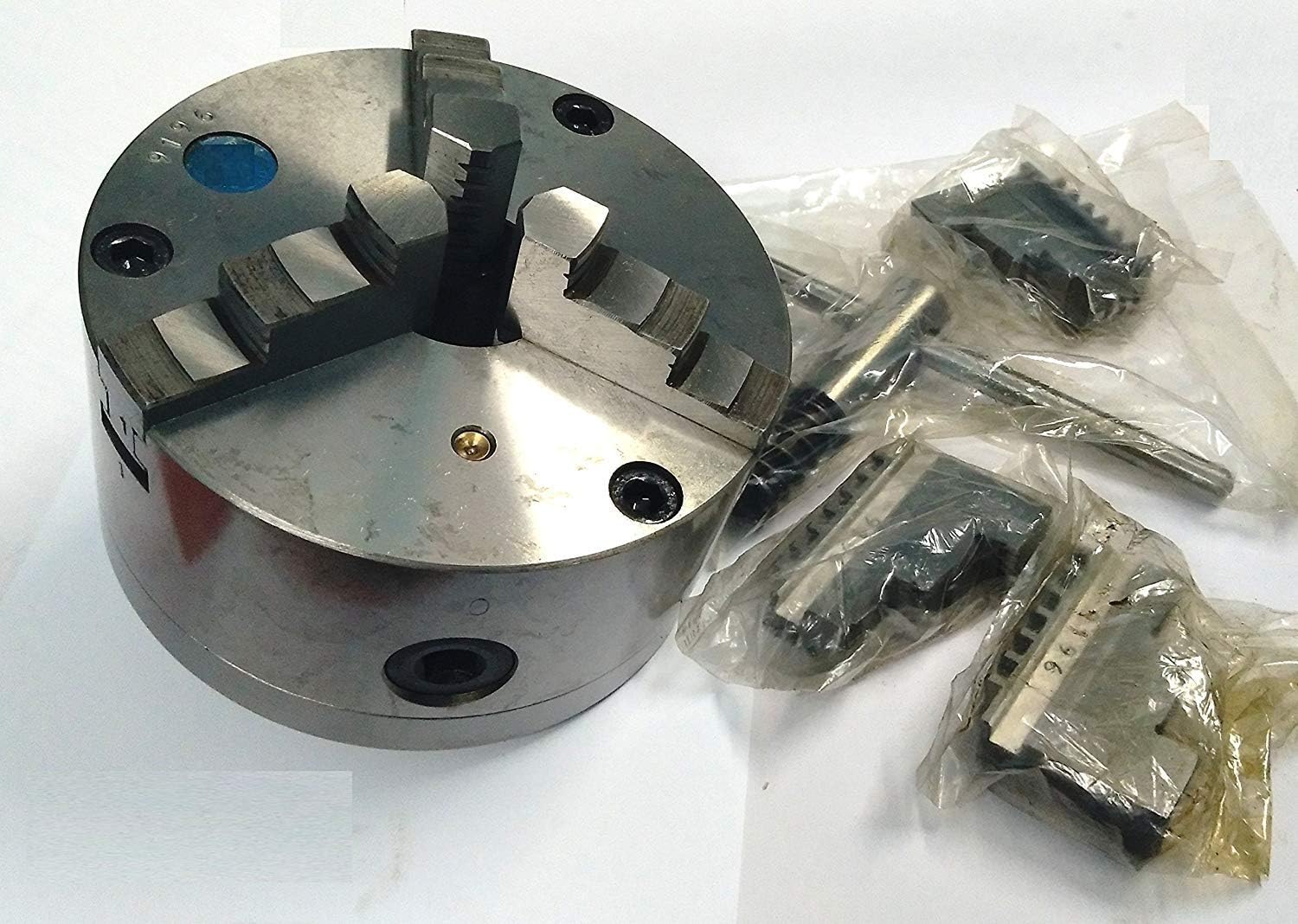

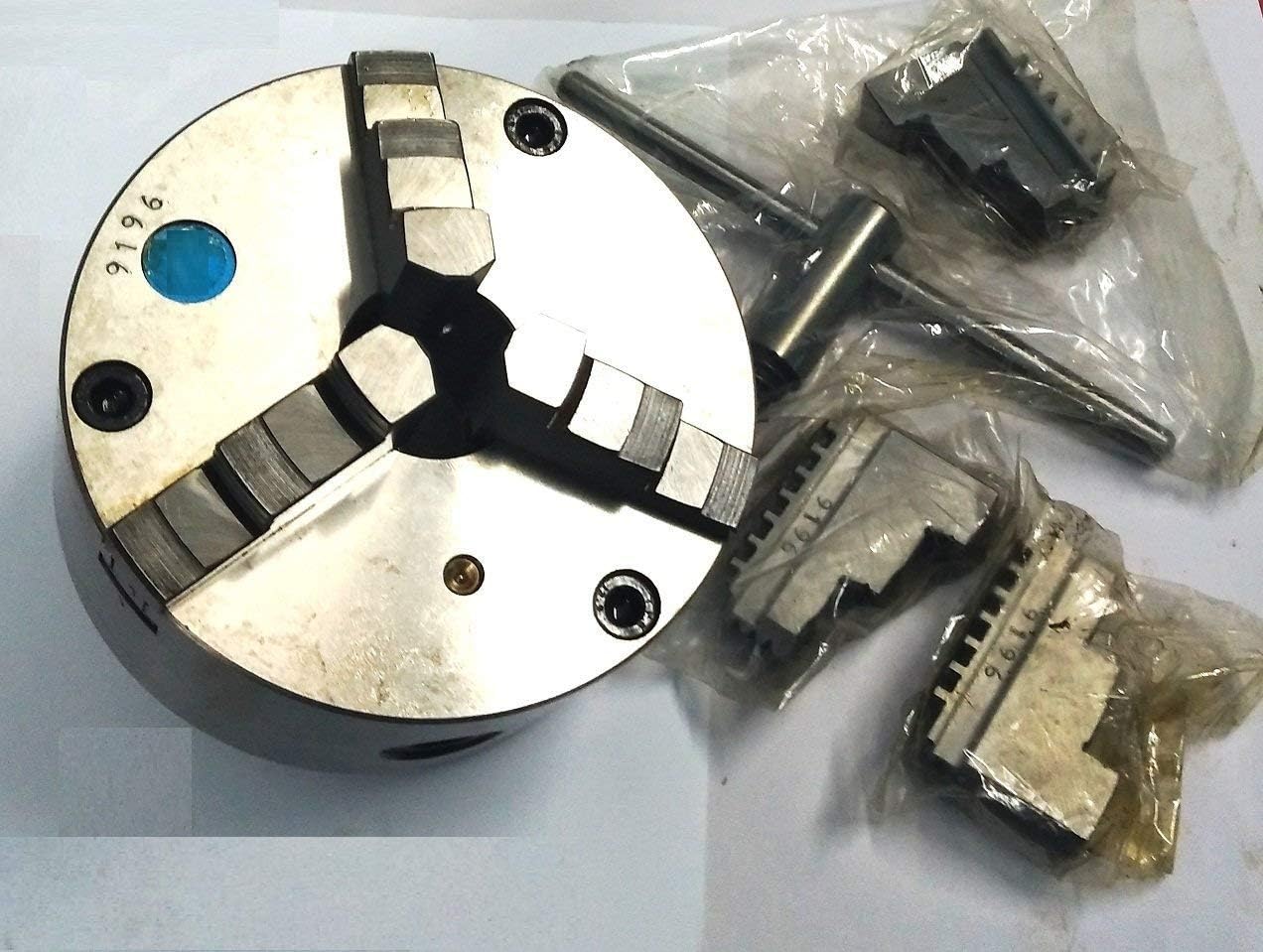

• 160 mm High-Precision Chuck:
This premium 160 mm diameter chuck is designed to hold large and heavy industrial workpieces. Its self-centering mechanism synchronizes all three jaws simultaneously, allowing round stock to be centered quickly and with excellent accuracy.
• MT3 Spigot for Maximum Accuracy:
The included steel back plate features an MT3 (Morse Taper 3) extension spigot that fits perfectly into the center hole of the rotary table. This ensures automatic and precise mechanical alignment with minimal setup error.
• Front-Mounted Design:
This chuck is designed in a front-mounted style using M8 threads, making it easy and secure to mount or remove the chuck from the back plate or rotary table.
• Rugged Industrial Build:
The chuck body is made from high-grade vibration-absorbing cast iron, while the jaws are constructed from hardened alloy steel, ensuring long-lasting durability and resistance to wear during heavy-duty operations.
• Optimized Profile:

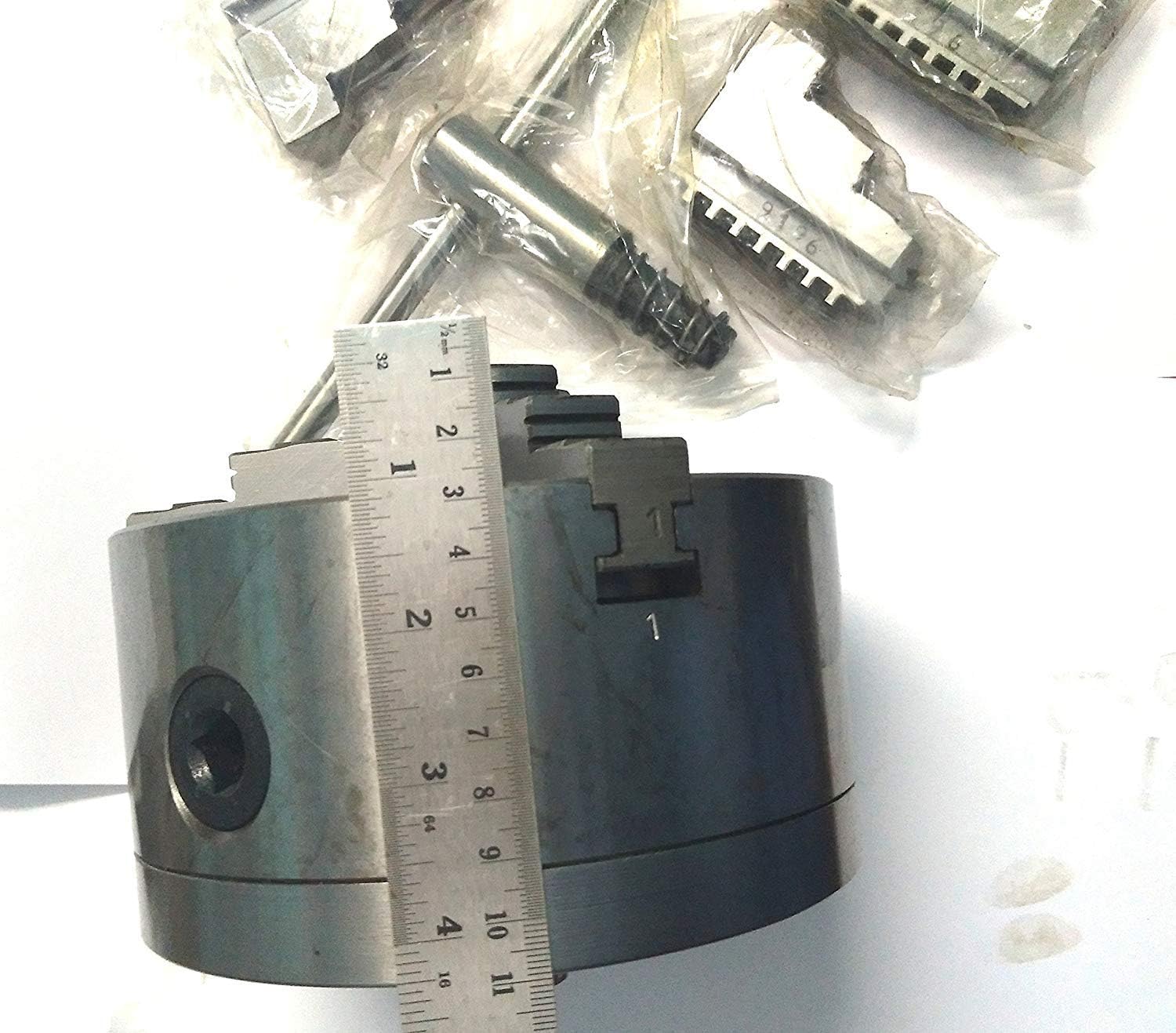

The chuck has a total height of 90 mm (with jaws, without the back plate). This balanced profile provides stable rotation and a strong grip for larger diameter workpieces.
• Precision Ground Back Plate:
The back plate recess is accurately machined to match the chuck, eliminating axial and radial run-out and ensuring smooth and precise performance.
• Essential Hardware Included:
The package includes high-quality M8 mounting screws and a heavy-duty chuck key. (Note: Fixing T-nuts must be arranged by the purchaser according to the slot size of the rotary table.)
