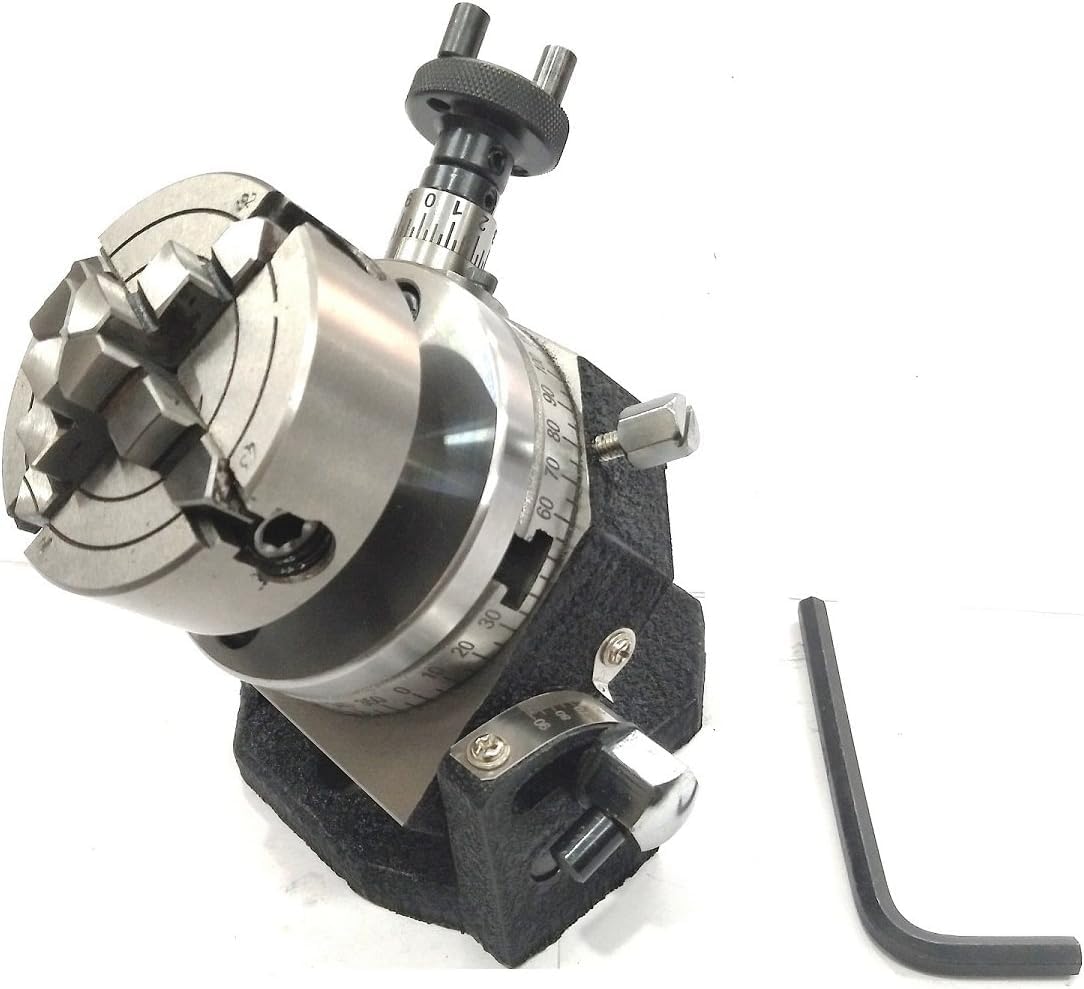

• Versatile 0° to 90° Tilting Range:
This high-precision rotary table can tilt from 0° to 90° and can be securely locked at any desired angle. It is an excellent solution for complex angular milling and drilling operations.
• 1:36 Precision Gear Ratio:
The table features a 1:36 precision worm-gear ratio, meaning each full rotation of the handle rotates the table exactly 10 degrees. This provides excellent control for gear cutting and fine indexing tasks.

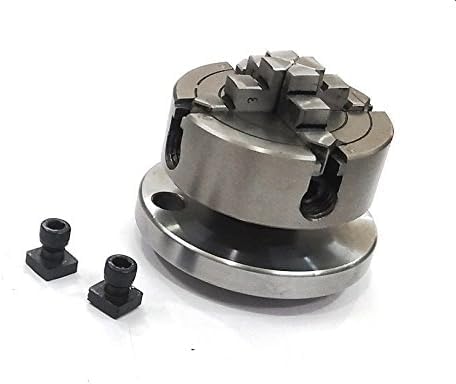

• 70 mm Independent 4-Jaw Chuck:
The set includes a 70 mm independent 4-jaw chuck. Each jaw can be adjusted independently, allowing you to securely hold irregular, square, or odd-shaped workpieces with precision.
• Complete M6 Clamping Kit:
The combo includes a heavy-duty M6 clamping kit, allowing you to mount flat or larger workpieces directly on the table without using the chuck. This significantly increases the versatility of your workshop setup.
• Dual-Mounting Capability:
This rotary table can be mounted in both horizontal and vertical positions. With a 66 mm vertical center height, it is ideal for small milling machines and drill presses.
• Precision Graduated Scales:
The table features a 360-degree graduated scale, while the handwheel includes fine 10-minute divisions. The handwheel can also be easily reset to zero to improve operational accuracy.
• Industrial Grade Alloy Steel Build:
Manufactured from premium alloy steel and cast iron, this rotary table offers excellent durability. The grey wrinkle finish protects the tool from rust and industrial wear, while precision-ground surfaces ensure accurate alignment.
• All-In-One Engineering Package:

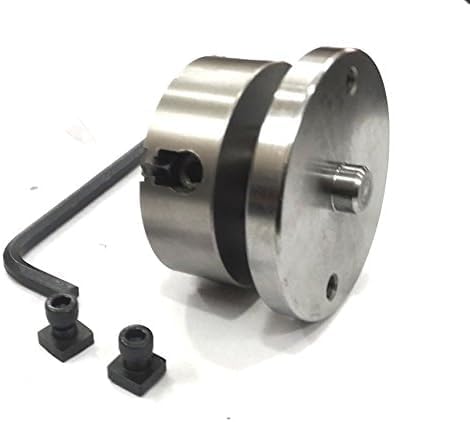

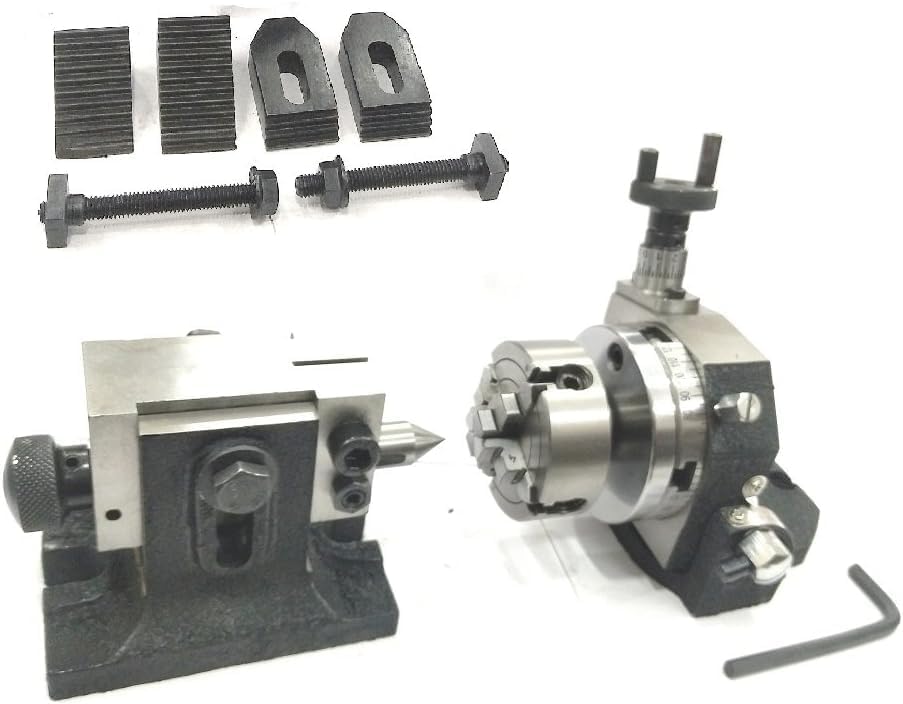

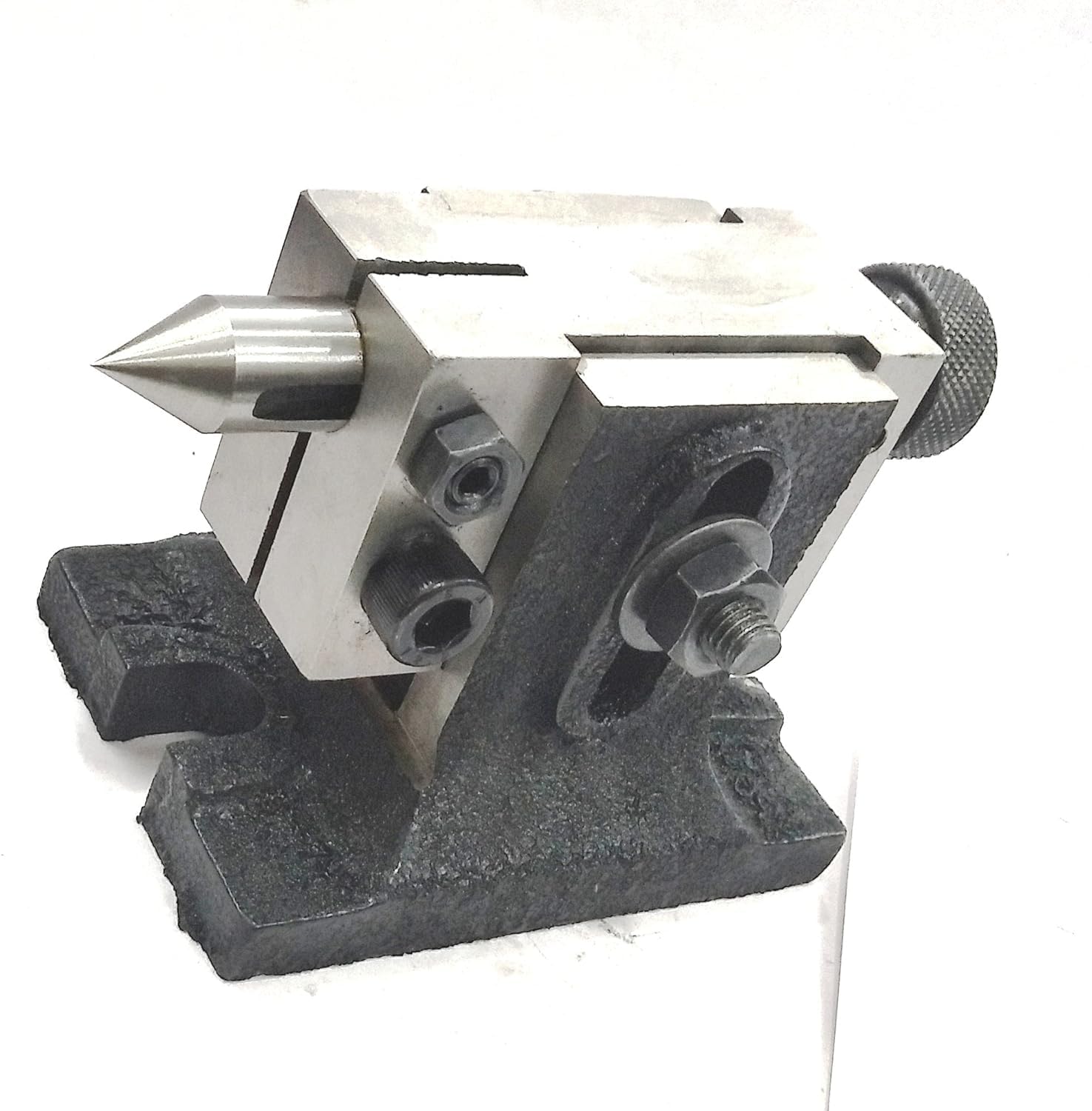

This complete kit includes an 80 mm tilting rotary table, 70 mm chuck, back plate, T-nuts, bolts, tailstock, and an M6 clamping kit, making it a fully ready-to-use machining setup.
