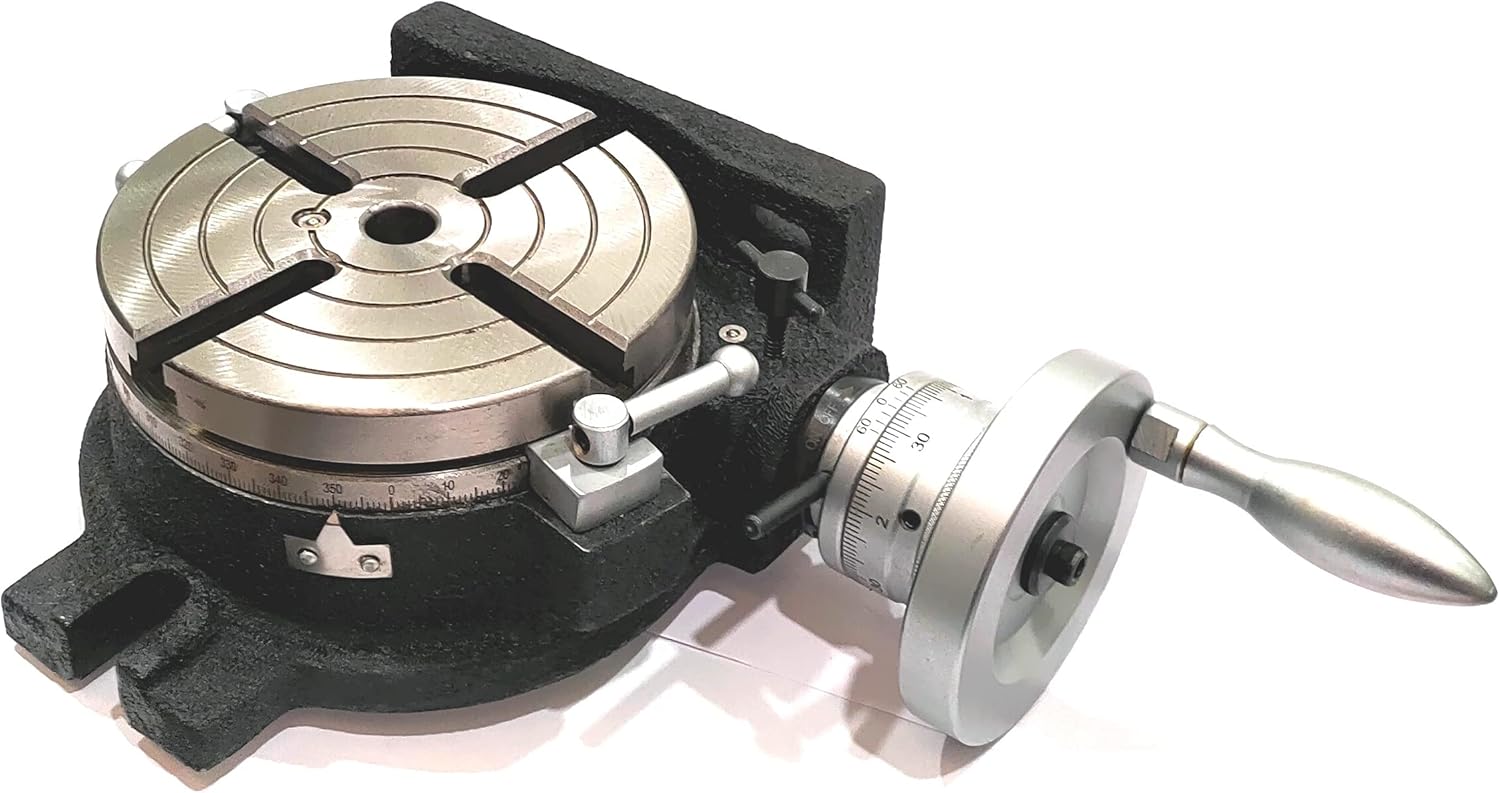

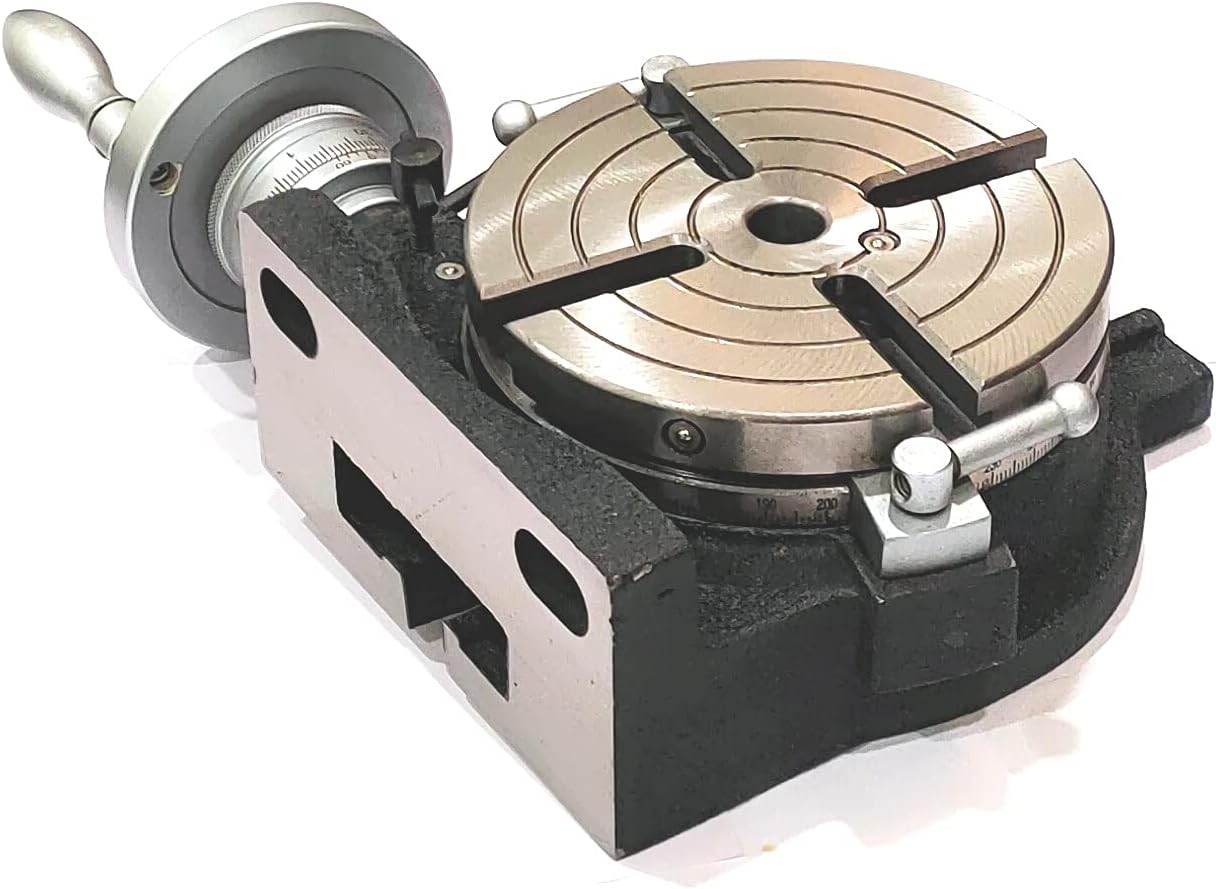

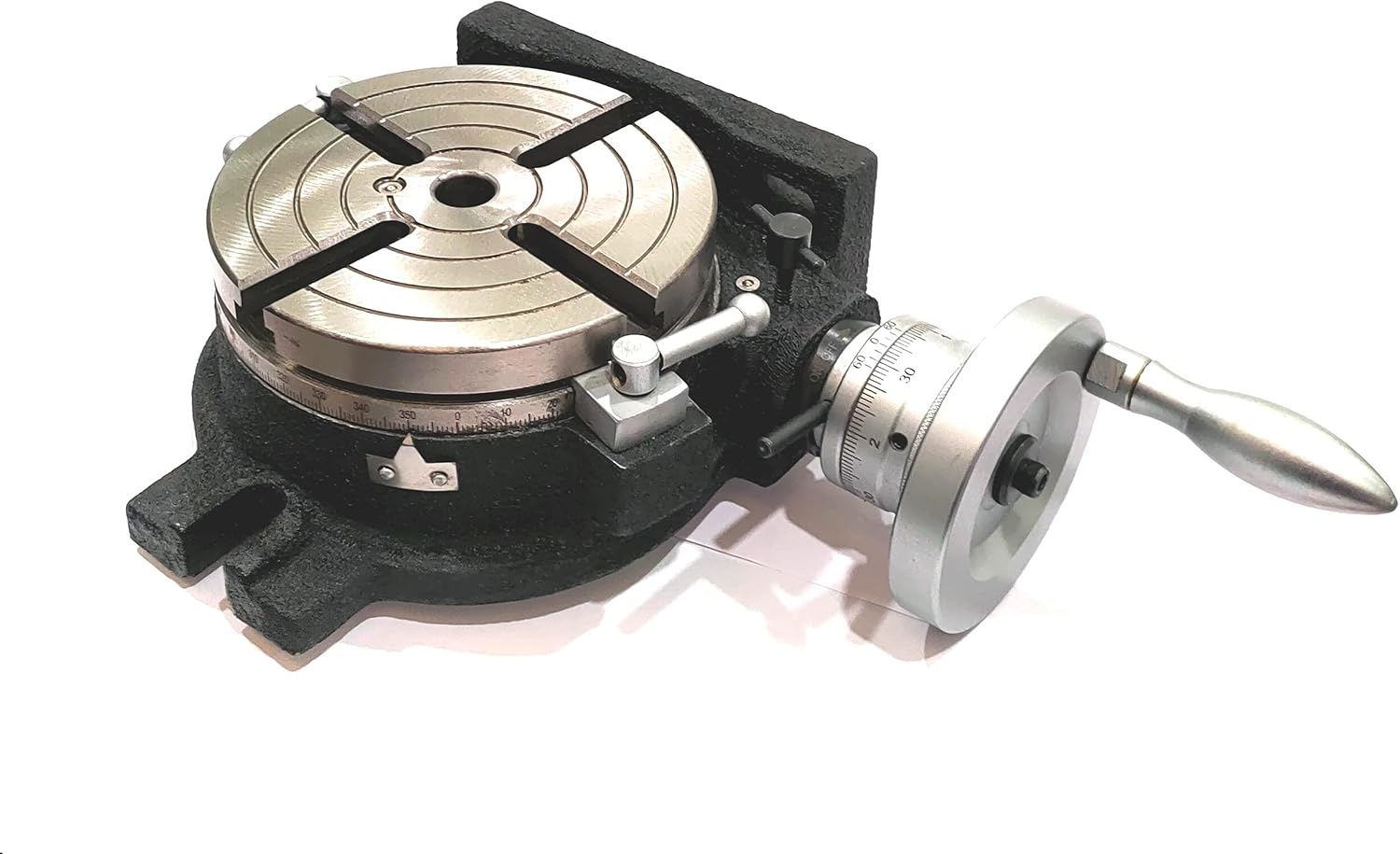

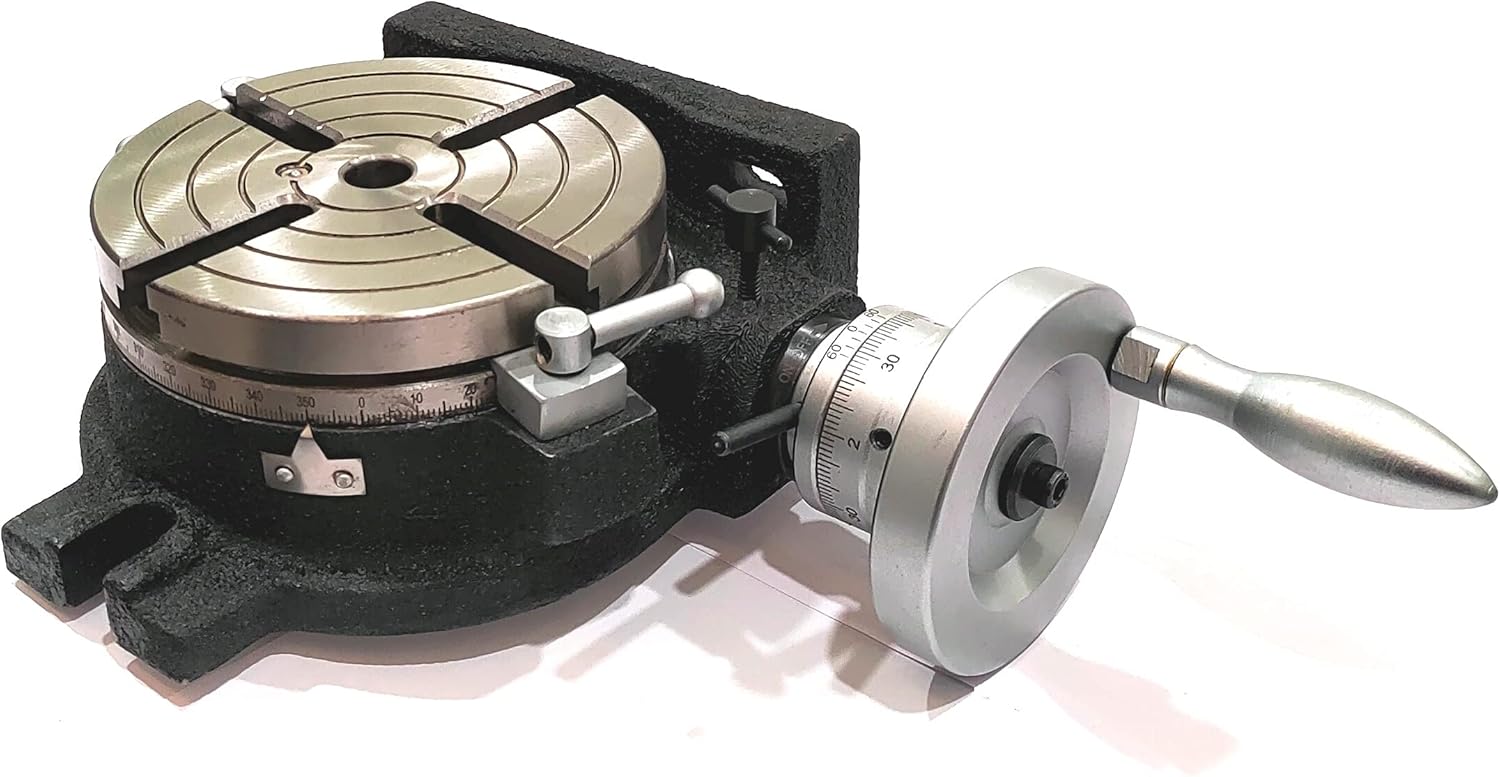

Horizontal Vertical HV6-4 slots Rotary Table 6" (150 mm) for Milling Machine

HV6 Rotary Table – Key Features

• Table Diameter: 150 mm (6")
• Overall Height: 80 mm (3-1/4")
• Center Height (Vertical Position): 105 mm

• Worm-Gear Ratio: 1 : 90 — one full handle rotation turns the table 4°

• 360° Graduation: Fully graduated table with resettable dial
• Handwheel Markings: Graduated in seconds; vernier scale calibrated to 10 seconds

• Center Bore: MT2
• T-Slot Width: 16 mm

• Construction: High-grade seasoned casting with powder-coated wrinkle finish
• finish: Precision-ground chuck surface for smooth operation

• Lubrication: Two oiling points for long life and consistent performance

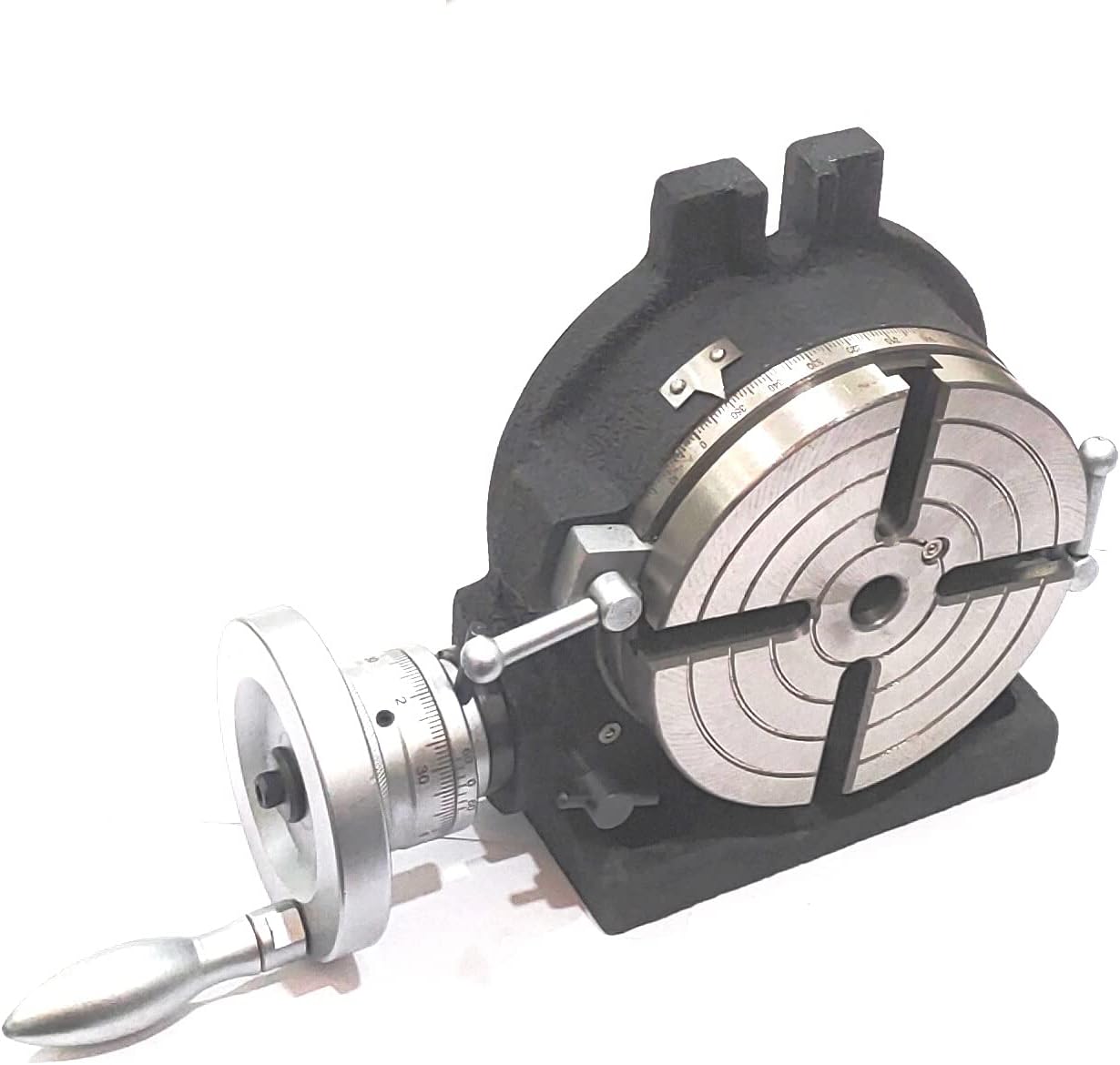

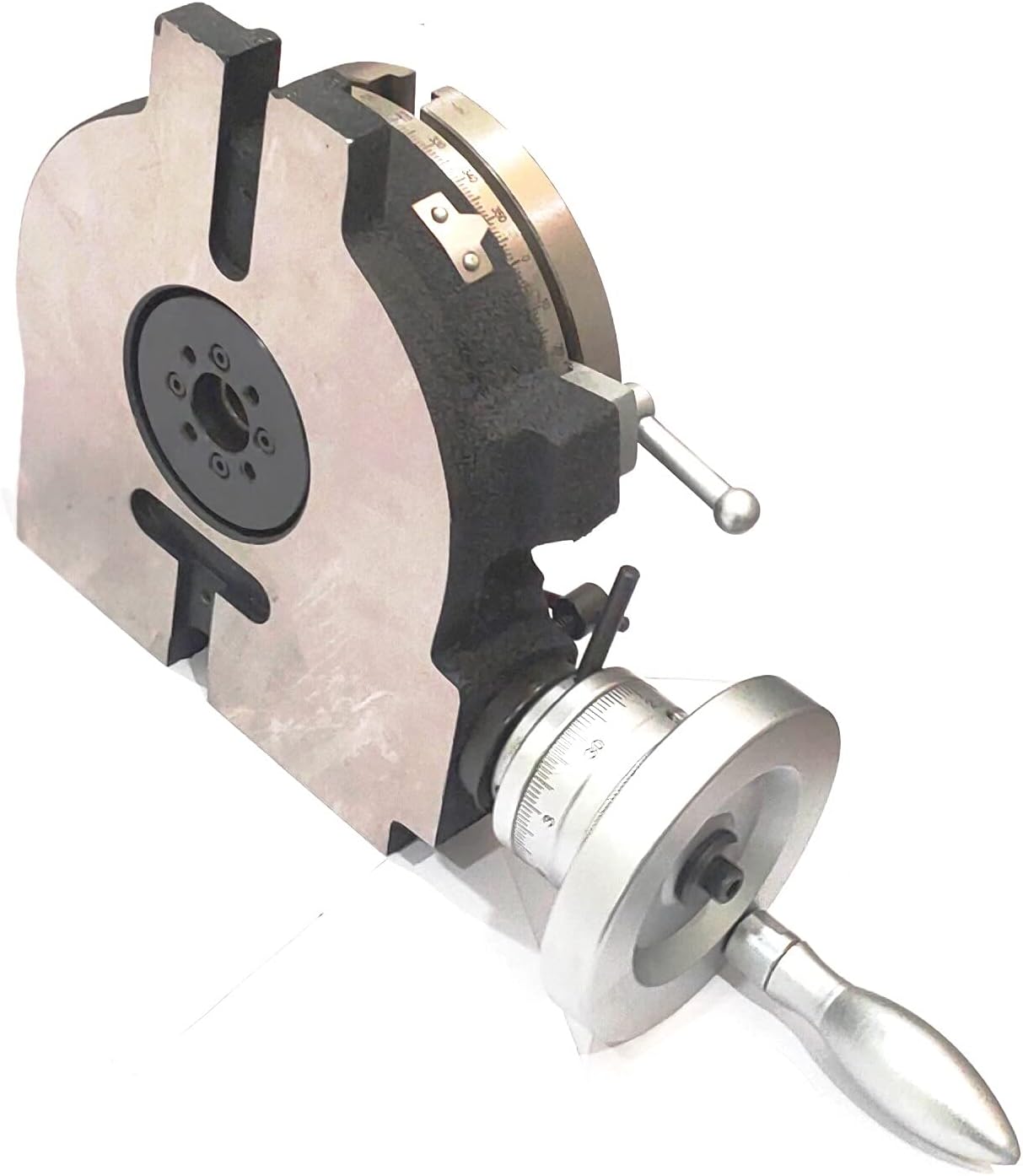

• Mounting Options: Usable in both horizontal and vertical positions

• Includes: Safety & operation manual
