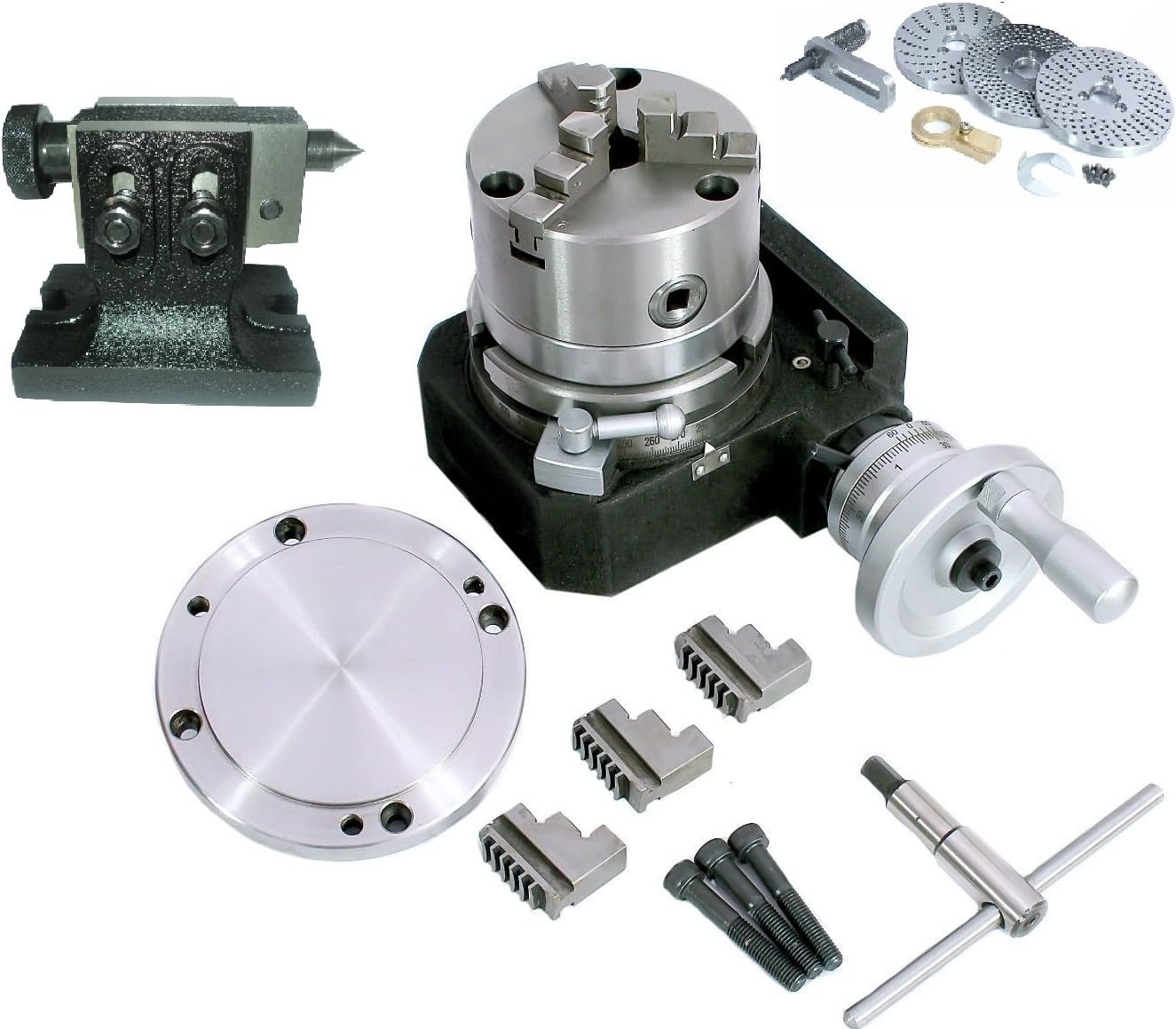

HV4 (110 MM) Rotary Table+100 mm 3 Jaws chuck with Reversible jaws+Back Plate+ Dividing Plate+ Tailstock- complete Milling indexing kit

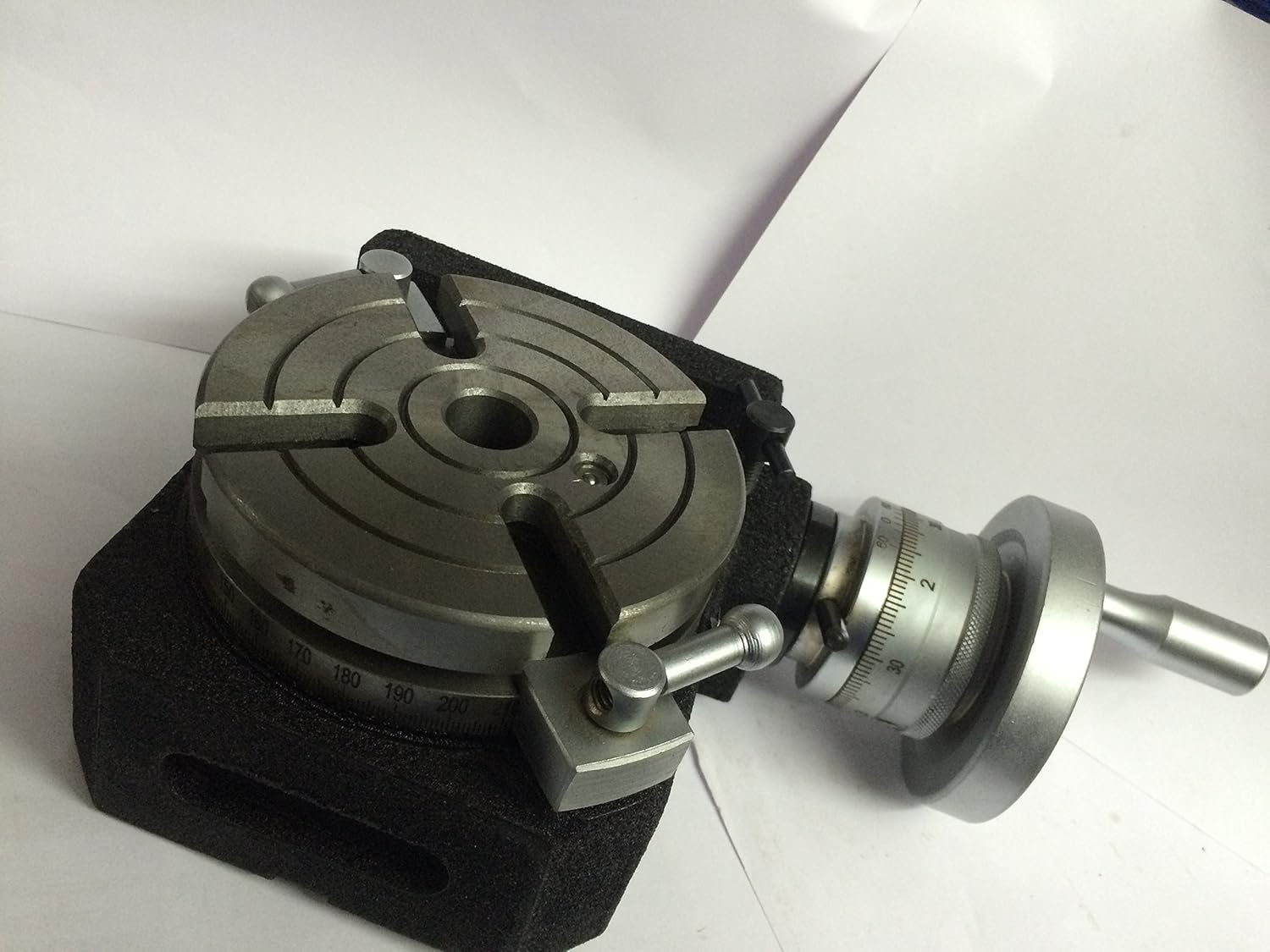

• Industrial-Grade HV4 Rotary Table:
This 110 mm (4-3/8") diameter rotary table is specially designed for precision machining applications. The HV design allows the table to be securely clamped in both horizontal and vertical positions for versatile machining setups.

• 1:90 Precision Gear Ratio:
The rotary table features a 1:90 high-accuracy worm gear ratio. Each full rotation of the handle moves the table exactly 4 degrees, while the vernier scale is calibrated up to 10 seconds, ensuring micro-level indexing accuracy.

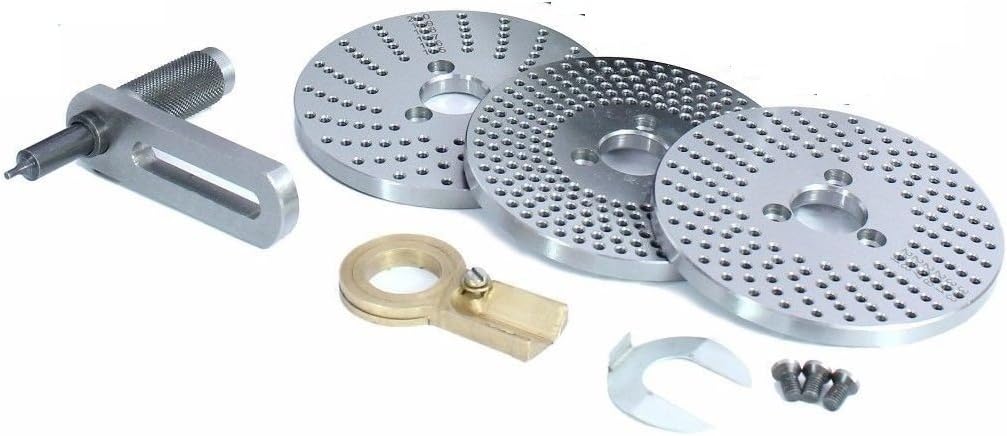

• Complete Dividing Plate Set:
The package includes three dividing plates (A, B, and C) with hole counts ranging from 15 to 49. These plates are essential for accurately dividing complex gears, splines, and evenly spaced hole patterns.

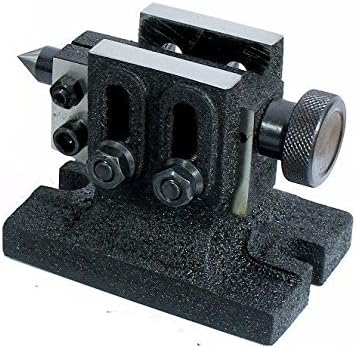

• Adjustable Tailstock (80–105 mm):
This set includes a premium adjustable tailstock with a center height adjustable from 80 mm to 105 mm. The point center is made from alloy steel with a precision-ground finish, providing stable and accurate workpiece support.

• MT2 Center Bore & Smooth Operation:
The rotary table features an MT2 (Morse Taper 2) center bore, compatible with standard machining accessories. Two lubrication points make oiling easy, helping maintain smooth operation and extending the tool’s service life.

• Quick-Release System:
A quick-release indexing mechanism allows fast positioning and adjustments during manual indexing, helping reduce setup time and improve workflow efficiency.

• Robust Cast Iron Construction:
The entire assembly is manufactured from seasoned cast iron and hardened steel, providing excellent durability and rigidity. Its heavy weight of approximately 39.6 lbs helps minimize vibration and maintain machining accuracy.

• Ready-to-Install Accessory Kit:
The set includes dividing plates, screws, washers, sector arms, and an indexing handle, providing a complete setup. Simply unpack and the rotary table is ready for immediate installation and use.

Dispatch Time: 1–2 business days
International Delivery: 5–12 business days (location-wise)
Tracking: End-to-end international tracking available
Packaging: Shockproof & secure export packaging
Customs/Duties: May apply based on destination country
Carrier: DHL / FedEx / UPS (depending on region)

Warranty: 6–12 months (manufacturing defects only)
Returns: Accepted for defective, damaged, or incorrect items
Return Window: 7 days from delivery
Replacement: Free replacement for eligible claims
Process: Email support with product video/photos
Note: Used/damaged by customer items not returnable

Read the user manual before first use

Wear safety gloves & eye protection when required

Keep away from children

Do not overload or misuse the product

Store in a dry, moisture-free environment

Clean tools after use to maintain performance
