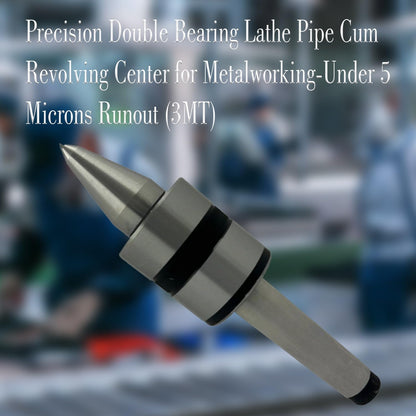

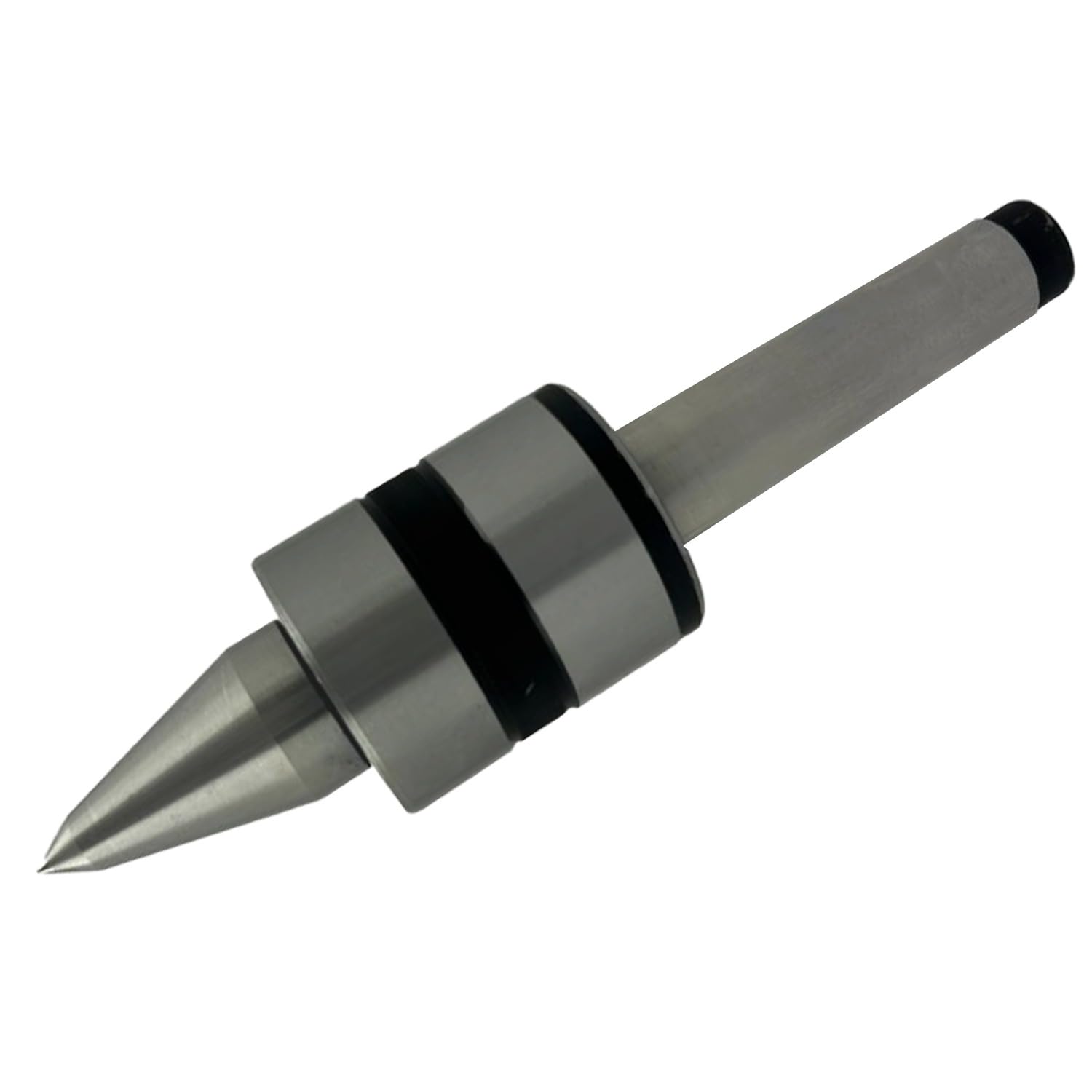

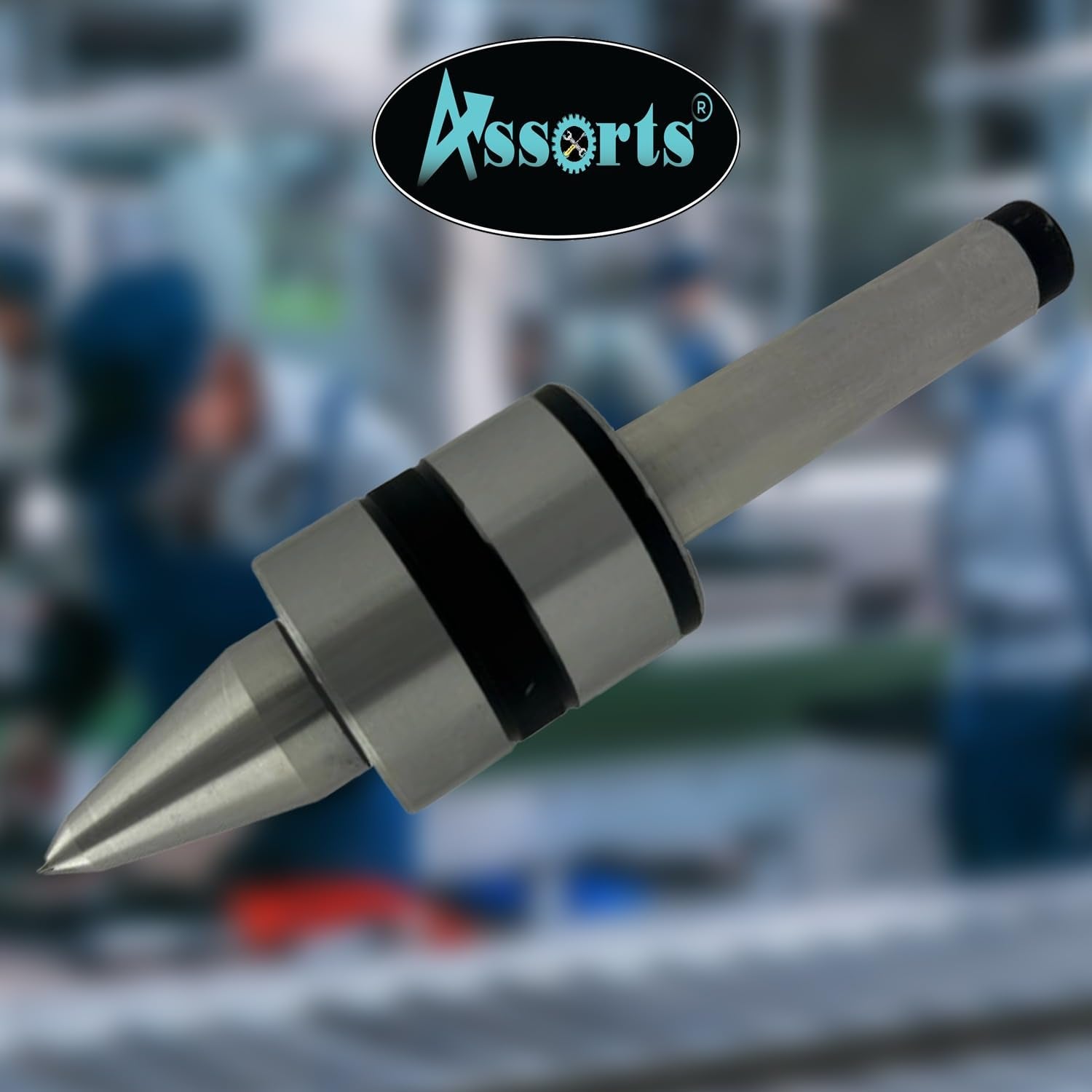

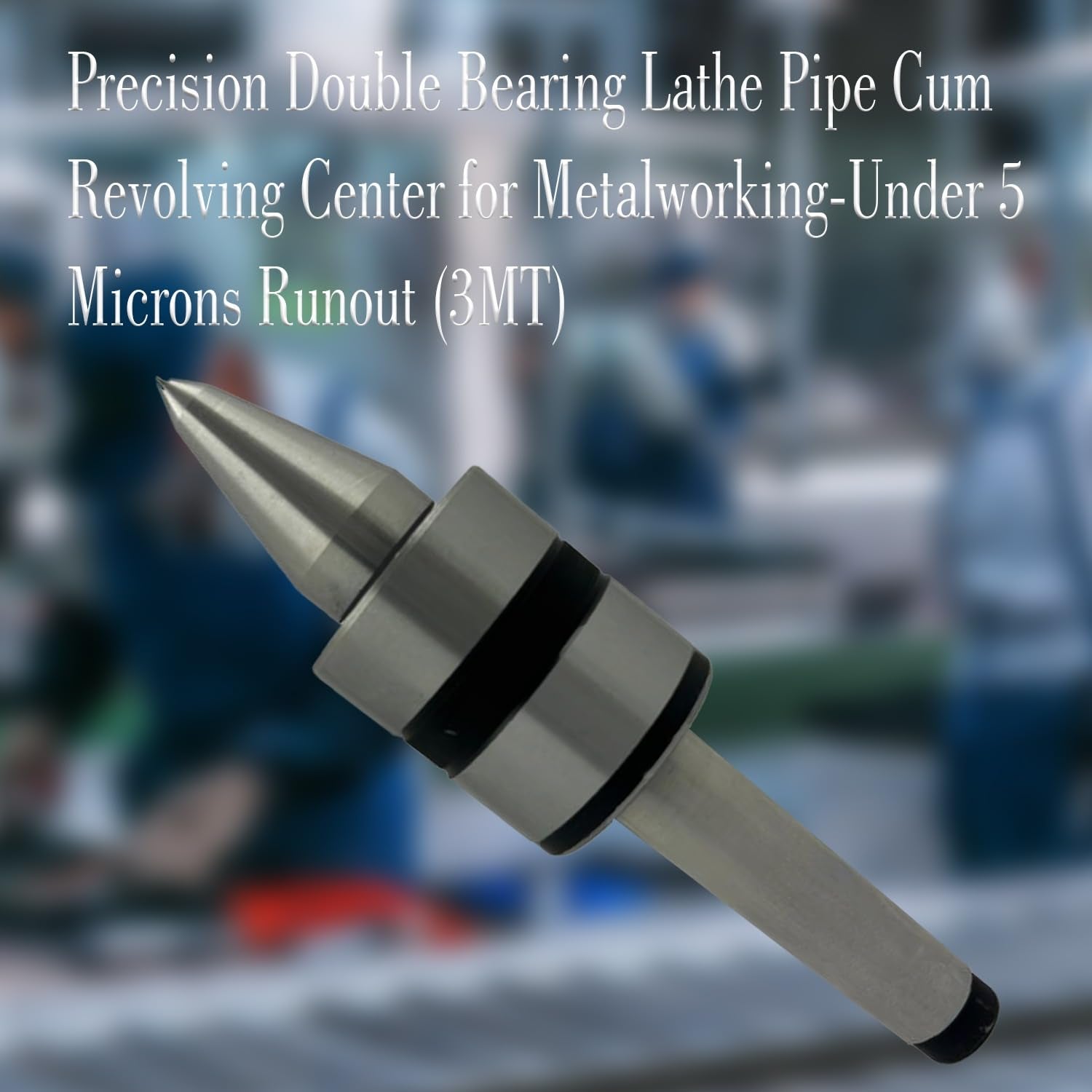

Precision Double Bearing Lathe Pipe Cum Revolving Center for Metalworking-Under 5 Microns Runout (3MT)

• Hybrid 2-in-1 Functionality: Expertly designed to serve as both a standard Live Center and a Pipe Center
• Exceptional Precision: Features an ultra-tight run-out tolerance of under 5 microns—ideal for high-accuracy conventional lathes

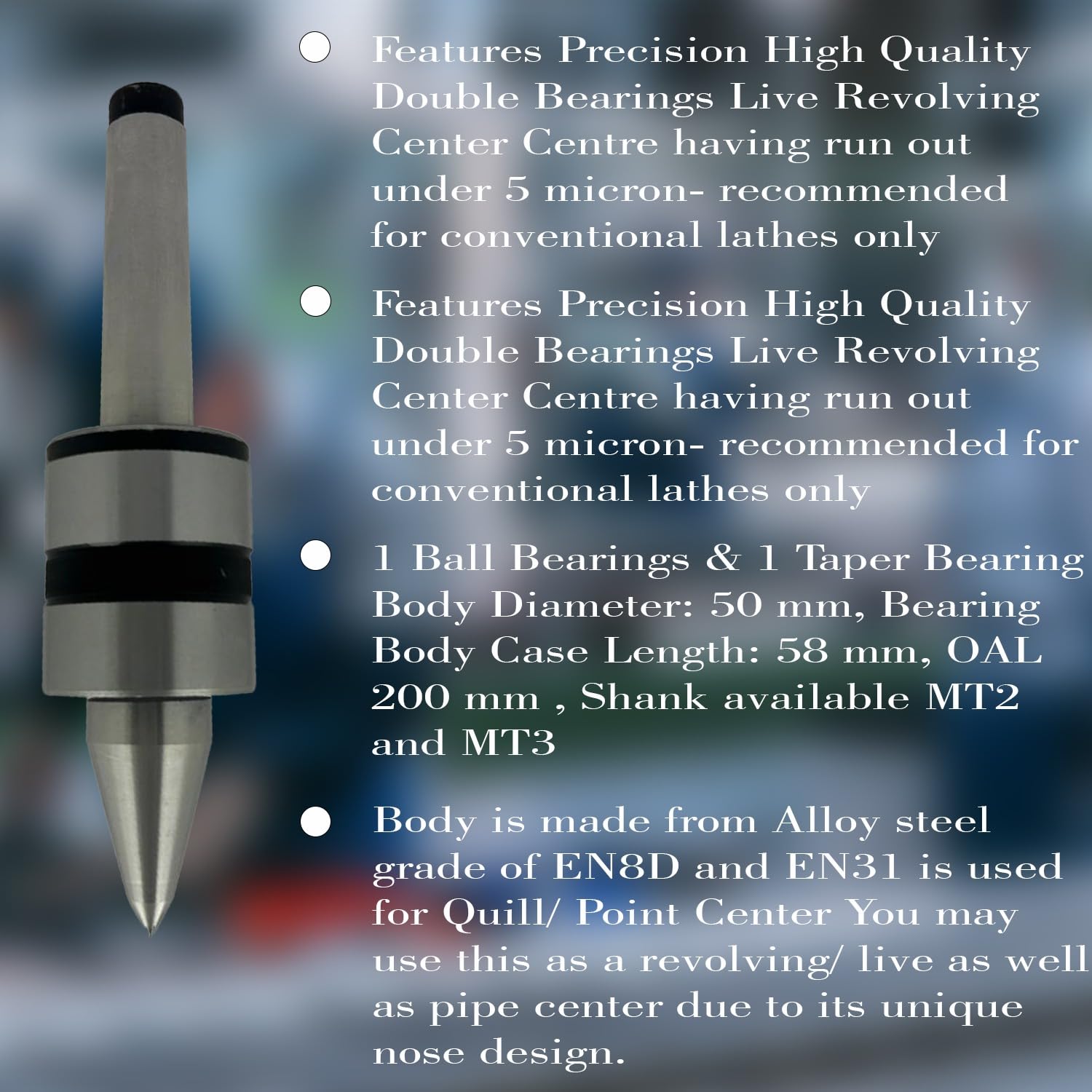

• Dual-Bearing System: Equipped with 1 Ball Bearing and 1 Taper Bearing for balanced radial and high-axial thrust support
• Premium Construction: Main body is crafted from EN8D Alloy Steel, while the Quill/Point uses high-strength EN31 Tool Steel
• Versatile Pipe Capacity: The unique nose geometry allows for turning and centering hollow pipes from 12 mm to 28 mm
• Advanced Z-Type Seals: Uses quality covered bearings to ensure grease remains locked and sealed even at high operating temperatures
• Thermal Protection: Engineered to prevent lubricant leakage during intensive machining sessions when friction heat increases
• Industrial Dimensions: Features a 50 mm body diameter and a 58 mm bearing case length for maximum stability
• Extended Reach: 200 mm Overall Length (OAL) provides excellent clearance for a wide variety of workpieces
• Smooth Operation: Precision-ground surfaces ensure vibration-free performance for superior surface finishes
• Morse Taper Compatibility: Available in precision-ground MT2 and MT3 shanks to fit standard lathe tailstocks
• Professional Reliability: A versatile, heavy-duty solution for machinists who need to switch between solid and hollow work

Dispatch Time: 1–2 business days
International Delivery: 5–12 business days (location-wise)
Tracking: End-to-end international tracking available
Packaging: Shockproof & secure export packaging
Customs/Duties: May apply based on destination country
Carrier: DHL / FedEx / UPS (depending on region)

Warranty: 6–12 months (manufacturing defects only)
Returns: Accepted for defective, damaged, or incorrect items
Return Window: 7 days from delivery
Replacement: Free replacement for eligible claims
Process: Email support with product video/photos
Note: Used/damaged by customer items not returnable

Read the user manual before first use

Wear safety gloves & eye protection when required

Keep away from children

Do not overload or misuse the product

Store in a dry, moisture-free environment

Clean tools after use to maintain performance
