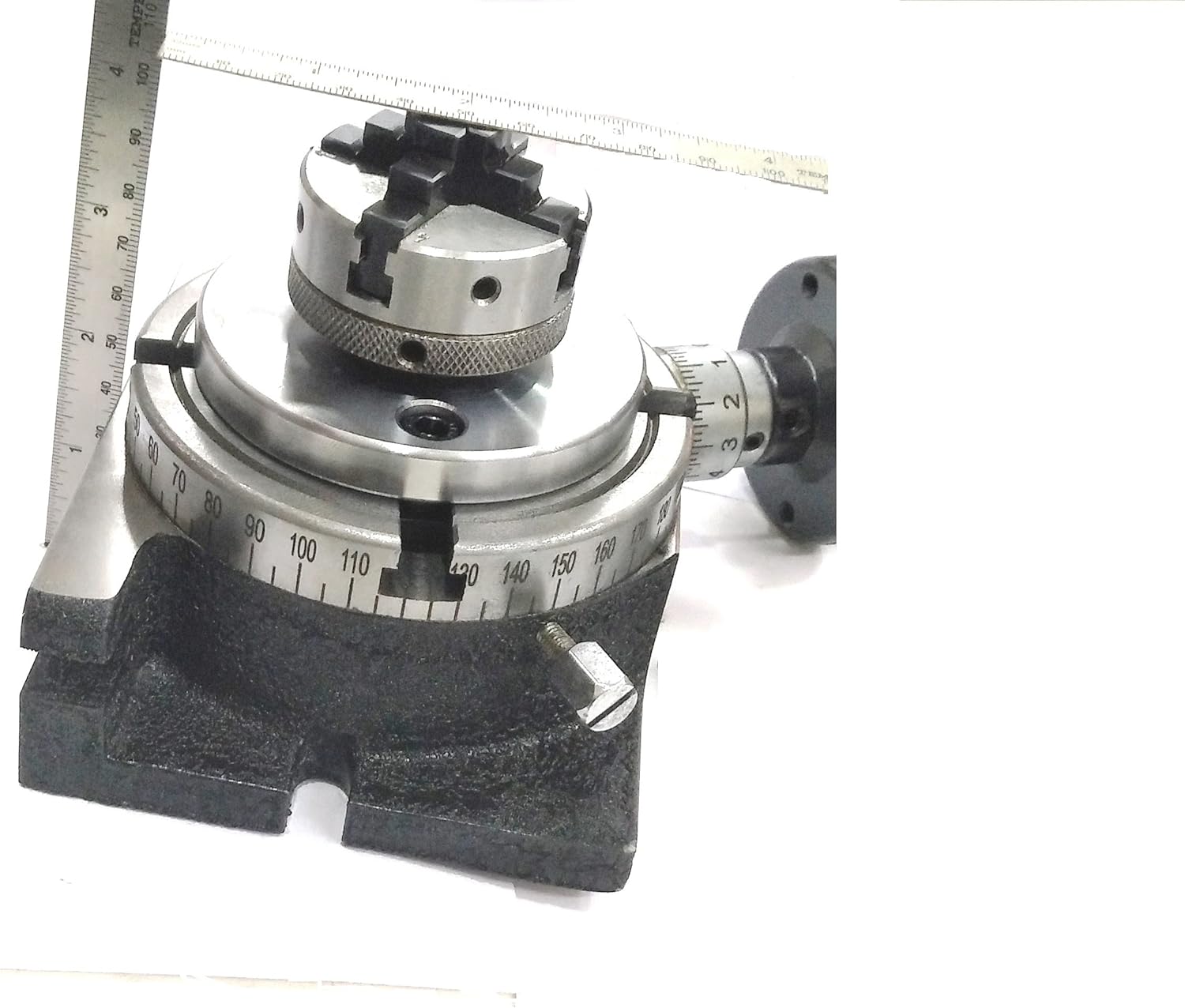

• Precision 4" (100 mm) Rotary Table:
This 100 mm (4-inch) rotary table is specially designed for small milling machines and features a 360-degree graduated scale. It is a professional tool for indexing, circular cutting, and precise angular adjustments.
• 1:36 High-Accuracy Gear Ratio:
The table features a 1:36 precision worm-gear ratio. Each full rotation of the handle rotates the table exactly 10 degrees, providing excellent control for gear cutting and fine machining tasks.

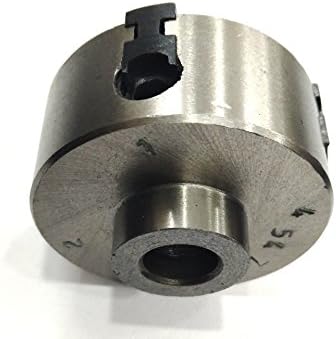

• 65 mm 3-Jaw Self-Centering Chuck:
The set includes a premium 65 mm scroll chuck. The chuck body is made from SG iron, while the jaws are manufactured from hardened tool steel, allowing round workpieces to be held quickly and perfectly centered.

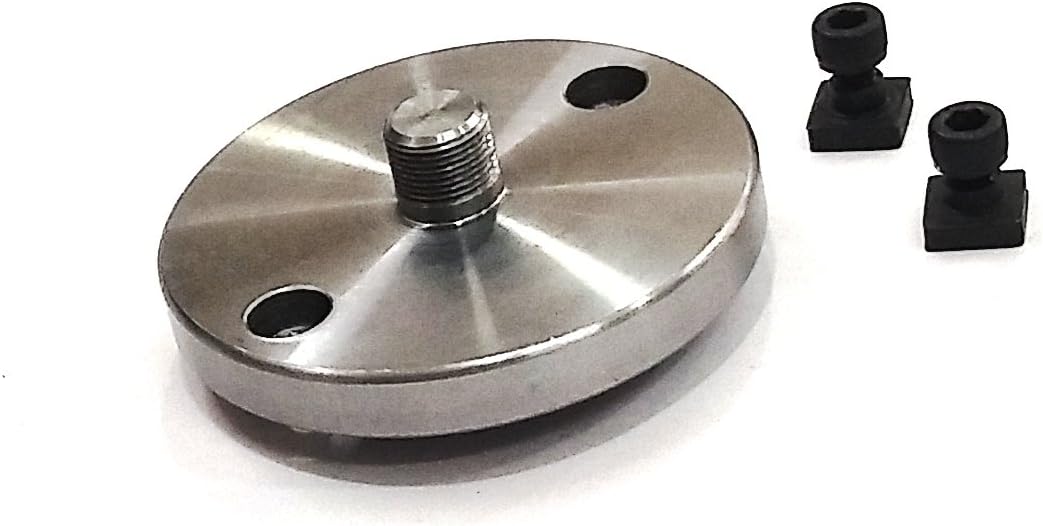

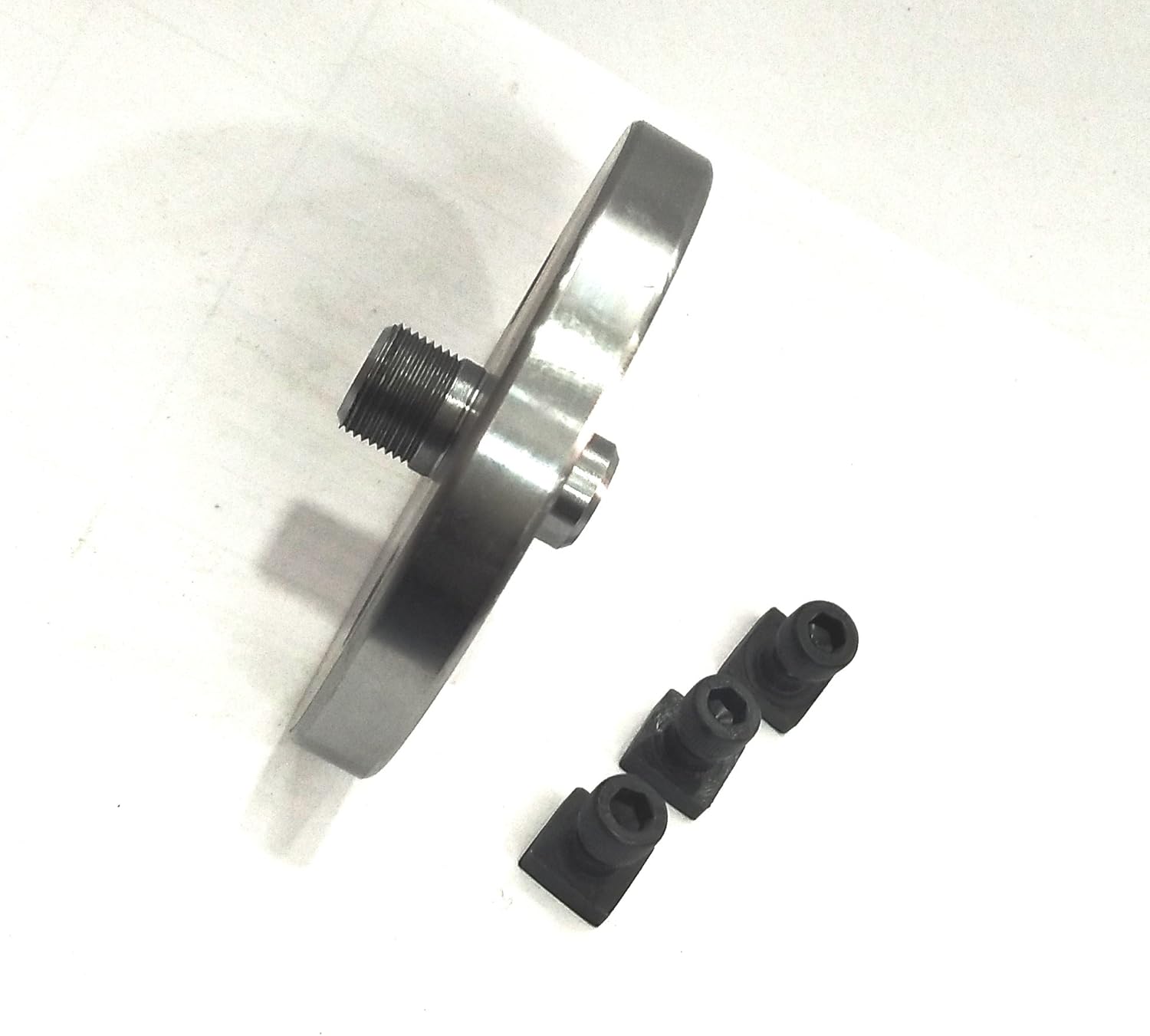

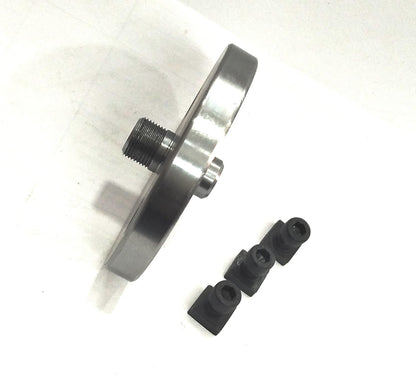

• Universal Mounting Back Plate:
A tool steel back plate is included, compatible with both 3-slot and 4-slot rotary tables. It features a locating spigot on the back, which helps automatically align the chuck with the center of the rotary table.
• Dual Position Mounting:
This rotary table can be mounted in both horizontal and vertical positions. With a 50 mm vertical center height, it is highly compatible with mini mills and drill presses.

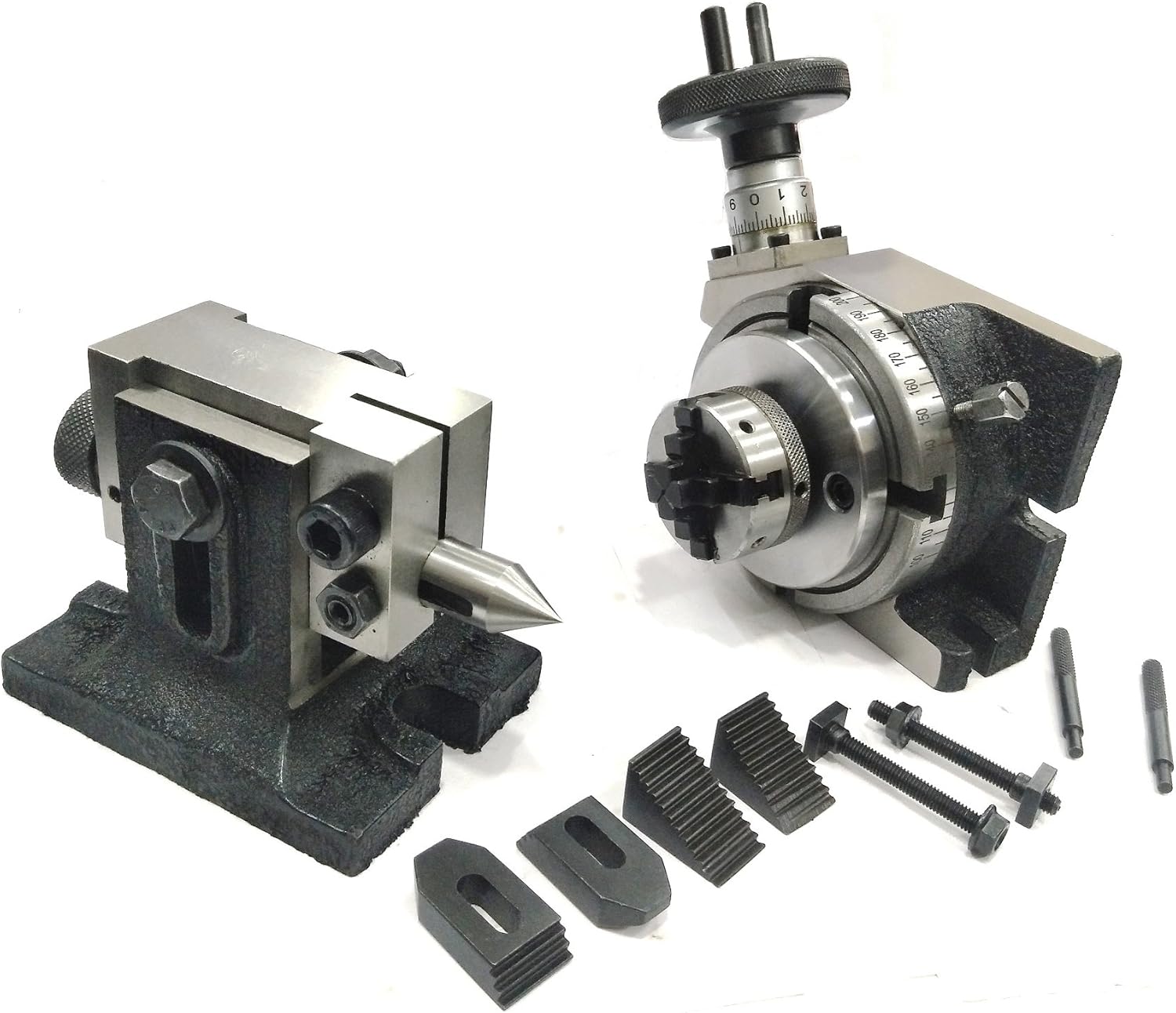

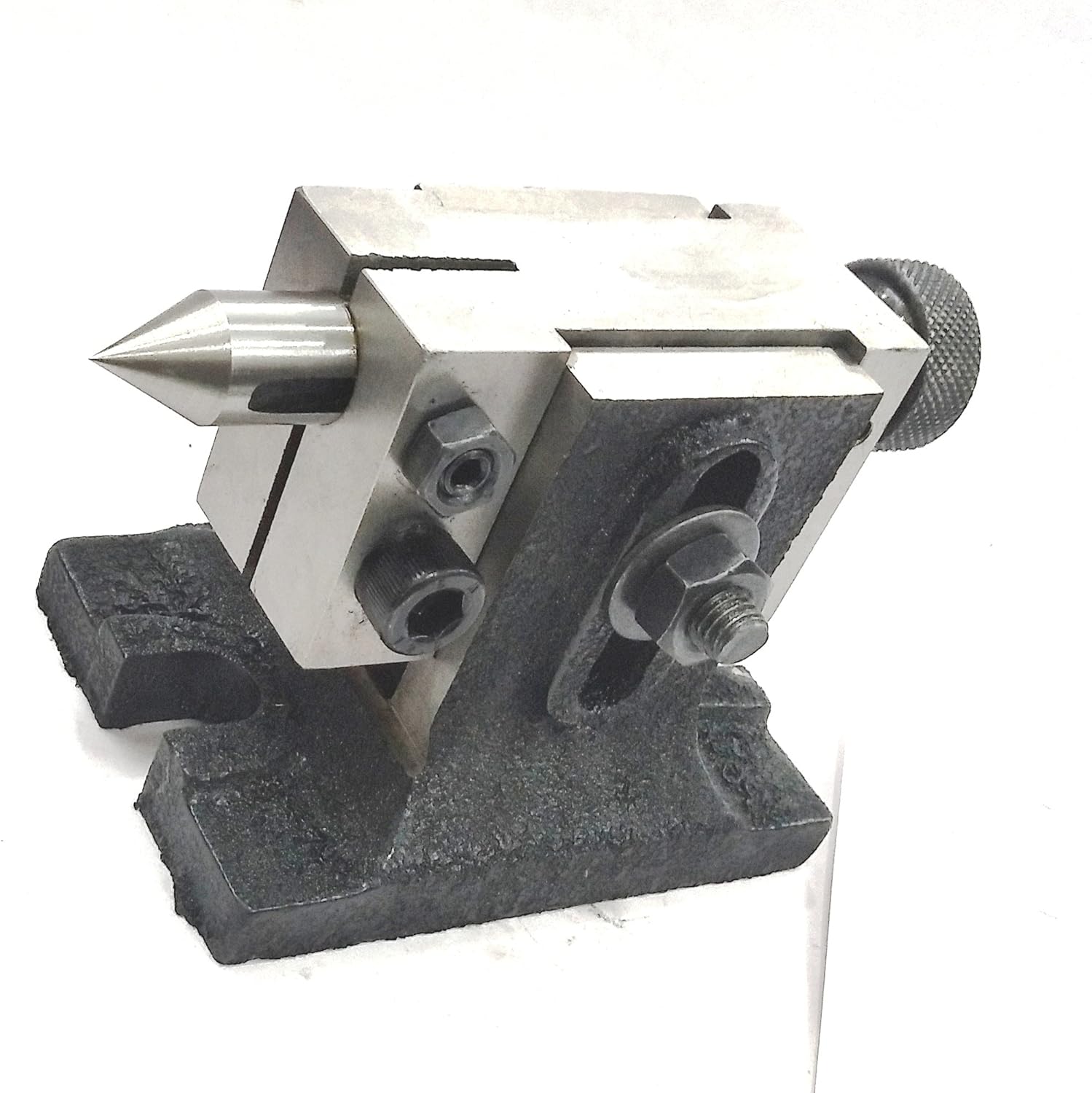

• Complete M6 Clamping Kit & Tailstock:
This bundle includes the rotary table, 3-jaw chuck, a matched adjustable tailstock, and a complete M6 clamping kit, allowing you to securely lock larger or irregular workpieces onto the table.
• Precision Ground & Wrinkle Finish:
The working surfaces are precision-ground to maintain consistent accuracy. The body features a durable wrinkle black finish that protects the tool from corrosion and workshop wear.
• Micro-Adjustable Handwheel:
The handwheel features fine 10-minute divisions and can be easily reset to zero, helping reduce manual errors and improving operational accuracy.
