Precision Horizontal Vertical Milling Indexing 4"/ 100 Rotary Table With Suitable Tailstock & Small Chuck & Fixing T Nut Bolts (With 65 Mm 3 Jaws Self Centering Chuck)

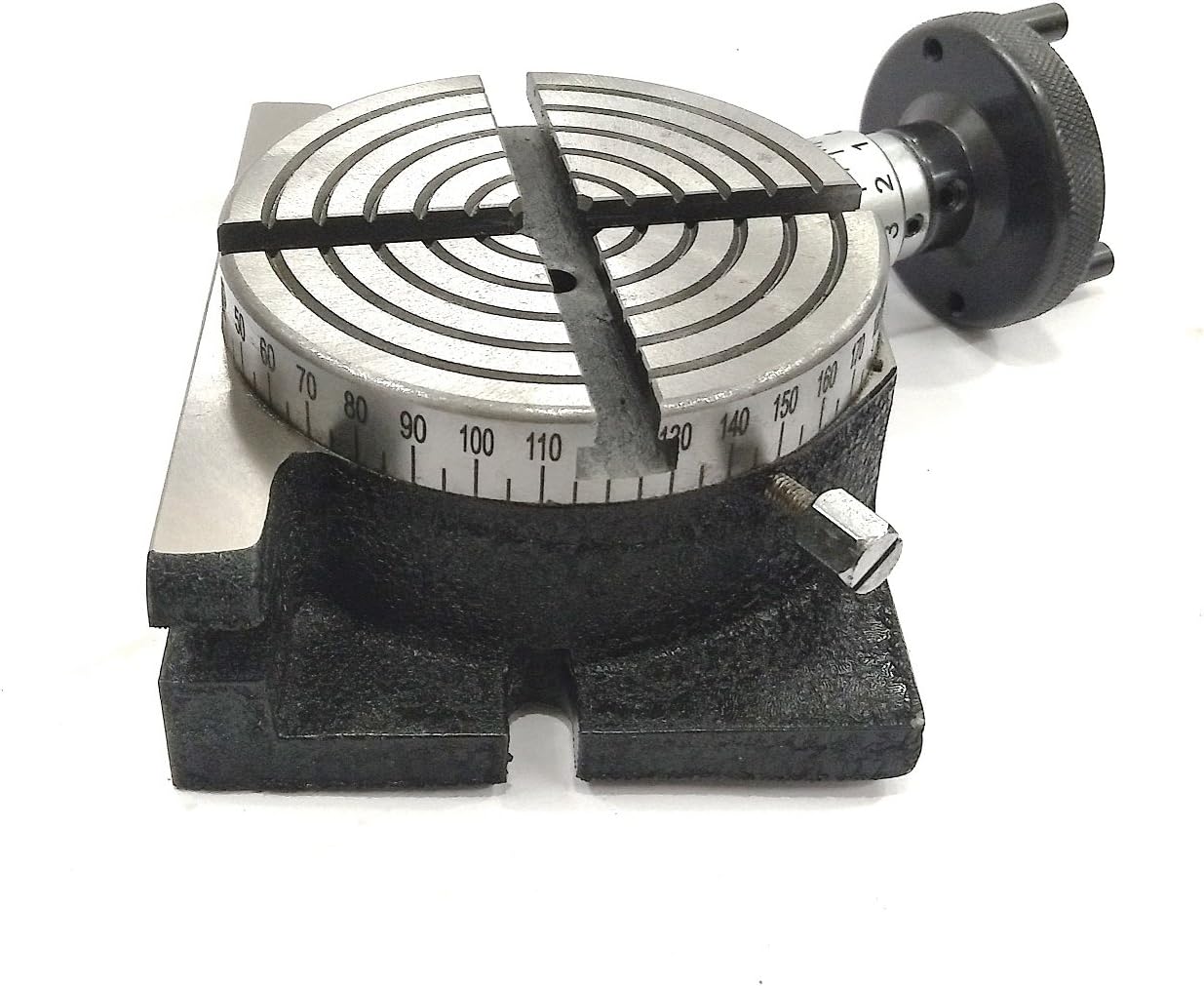

• Precision 100 mm (4") Rotary Table:
This 100 mm (4-inch) rotary table is specially designed for small milling machines and features a 360-degree graduated scale. It is an essential workshop tool for indexing, circular milling, and precise angular adjustments.

• 1:36 High-Accuracy Gear Ratio:
The table features a 1:36 precision worm-gear ratio. Each full rotation of the handle rotates the table exactly 10 degrees, providing excellent control for gear cutting and complex machining operations.

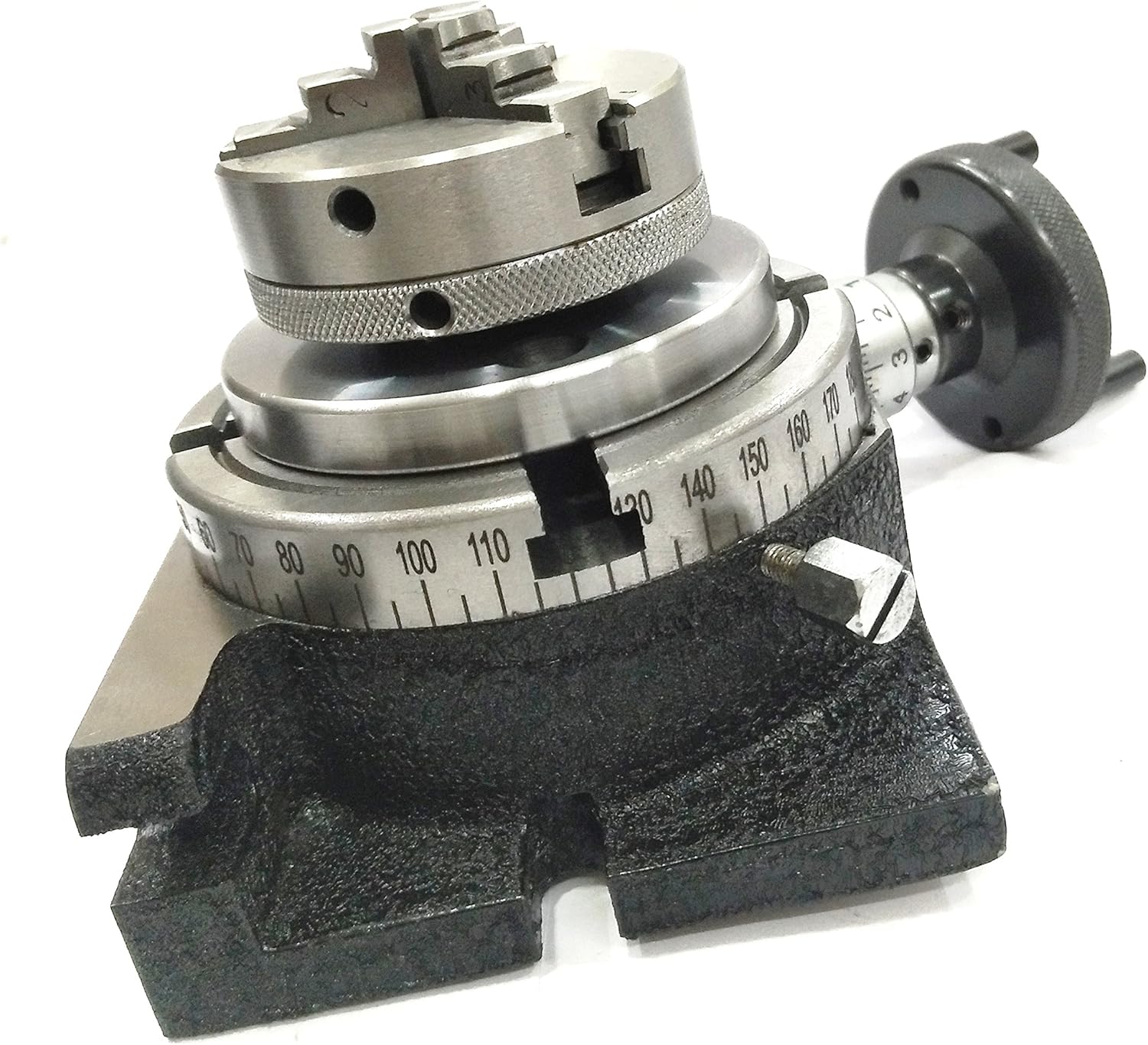

• 65 mm Self-Centering Scroll Chuck:
The set includes a high-quality 3-jaw self-centering chuck with a 65 mm diameter. The chuck body is made from SG iron, while the jaws are manufactured from hardened tool steel, allowing round workpieces to be held quickly and perfectly centered.

• Universal Multi-Slot Back Plate:
A tool steel back plate is included, compatible with both 3-slot and 4-slot rotary tables. It features a locating spigot at the back, which helps automatically align the chuck with the center of the table.

• Dual Position Mounting (Horizontal & Vertical):
This rotary table can be mounted in both horizontal and vertical positions. With a 50 mm (2-1/16") vertical center height, it is highly compatible with mini mills and drill presses, making it a versatile machining accessory.

• Micro-Adjustable Handwheel:
The handwheel features fine 10-minute divisions and can be easily reset to zero, helping reduce manual errors and improving operational accuracy.

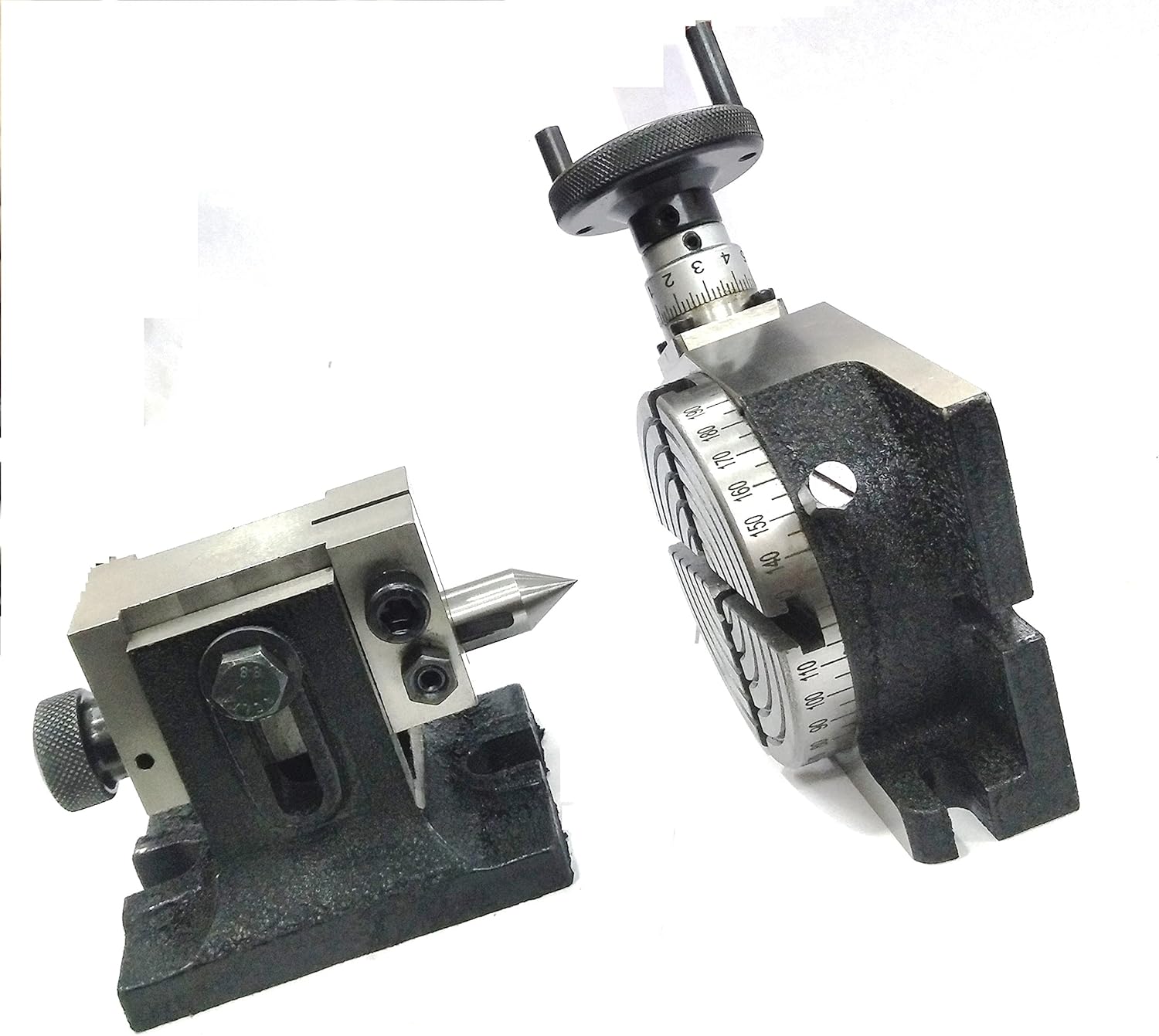

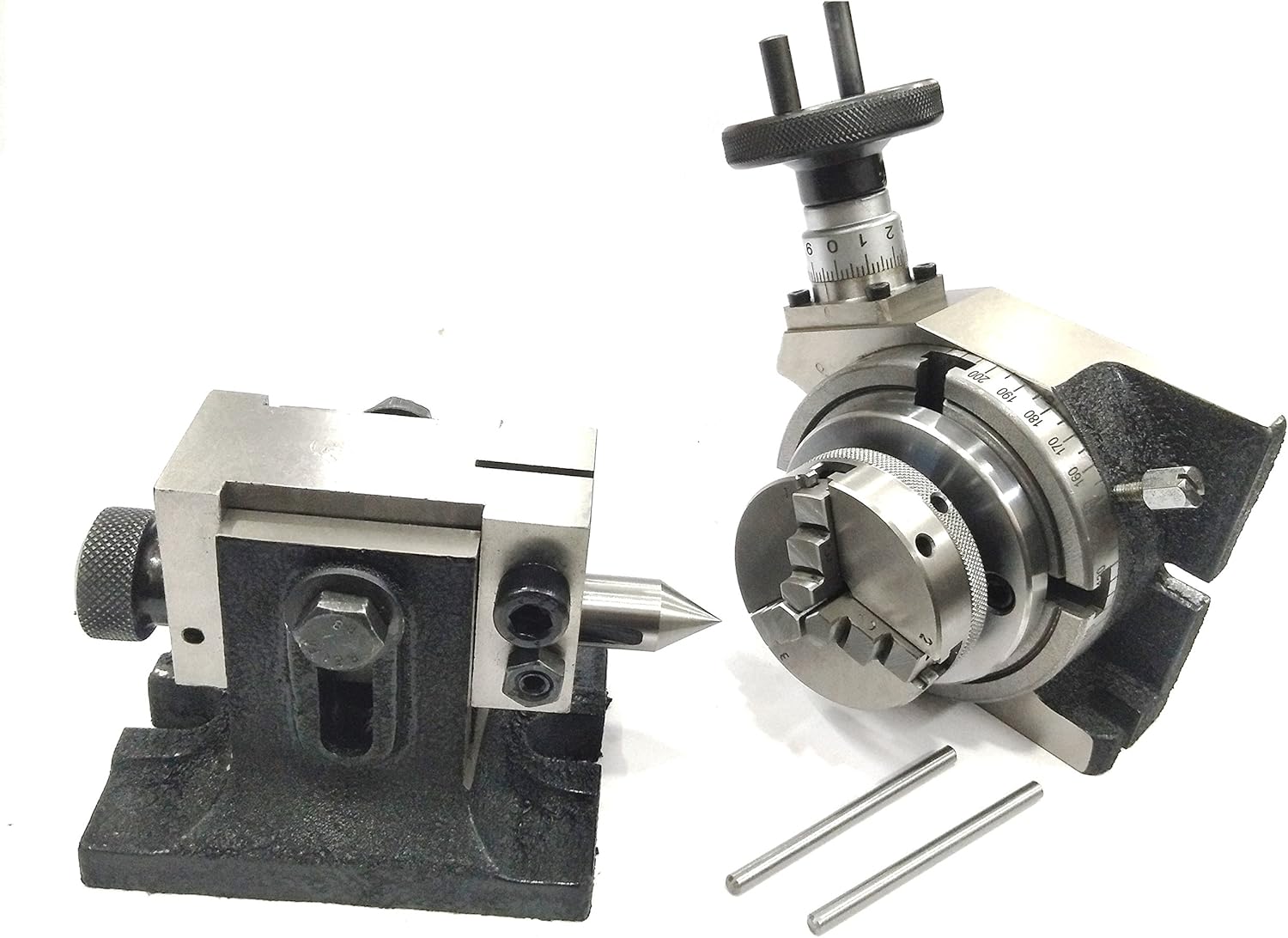

• Matched Tailstock Included:
The set includes a precision adjustable tailstock designed to support longer workpieces. This ensures proper alignment and minimizes vibration during machining for improved surface finishes.

• Industrial Build & Finish:
Constructed from high-grade cast iron with alloy tool steel components, the rotary table features a wrinkle black protective finish that helps resist corrosion and withstand workshop wear.
