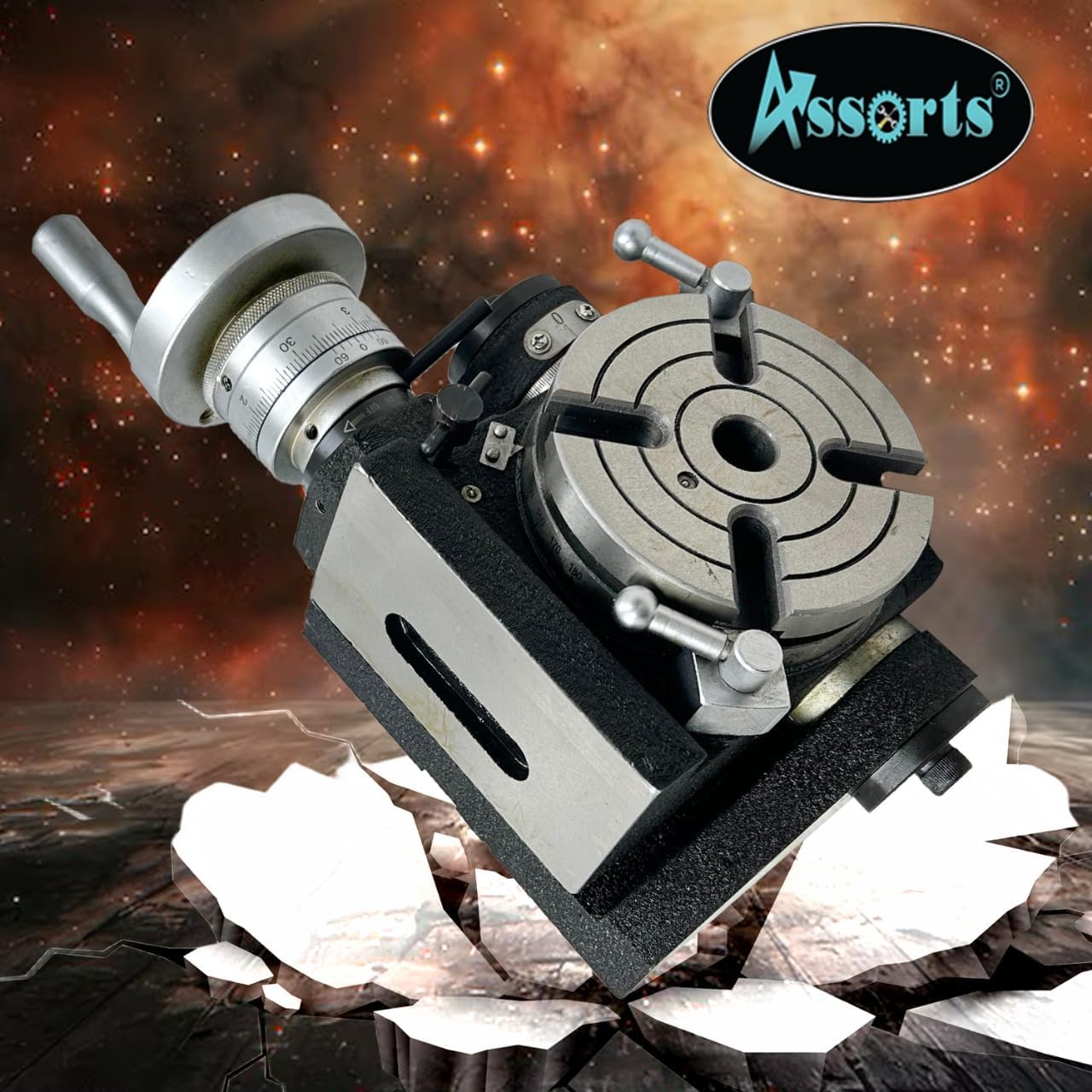

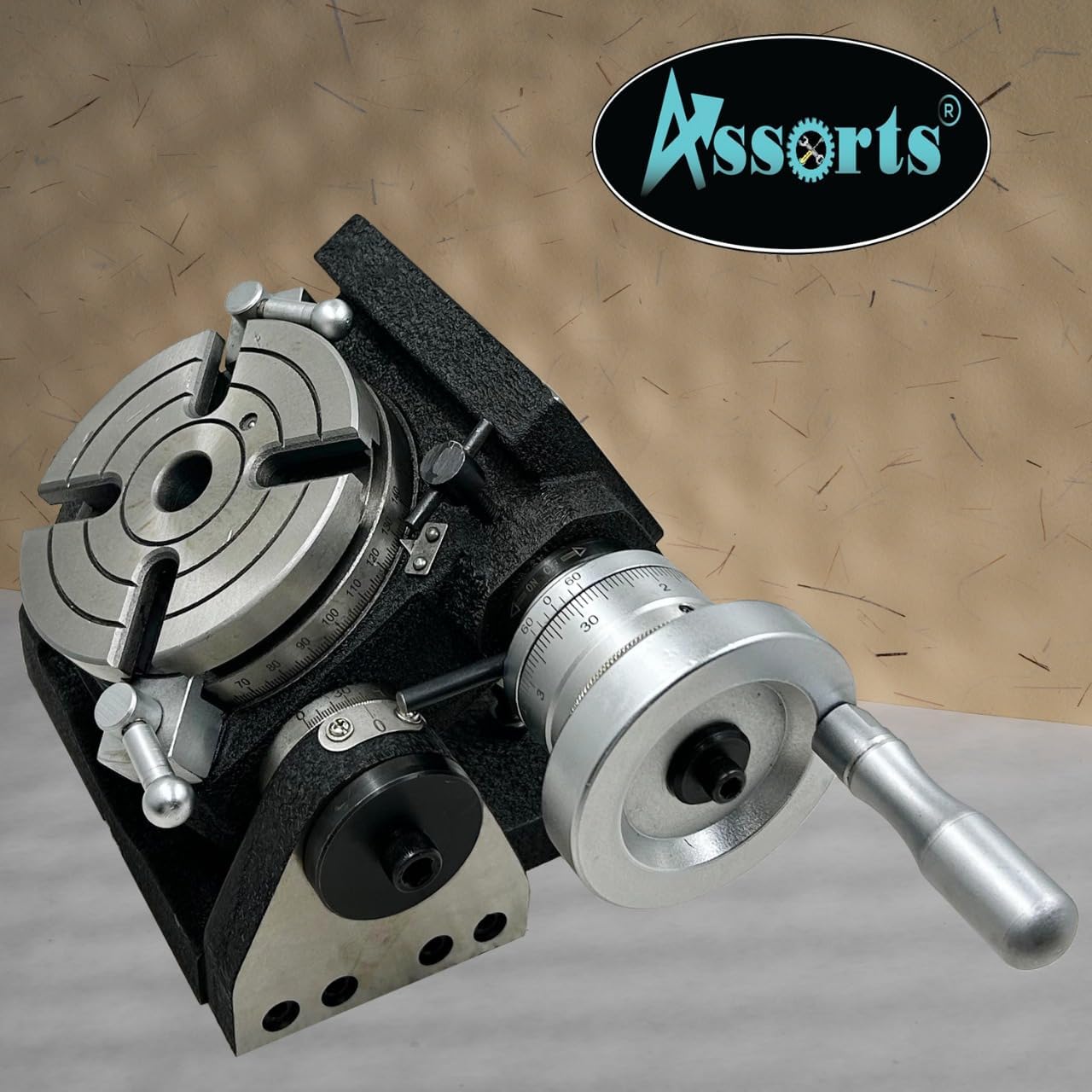

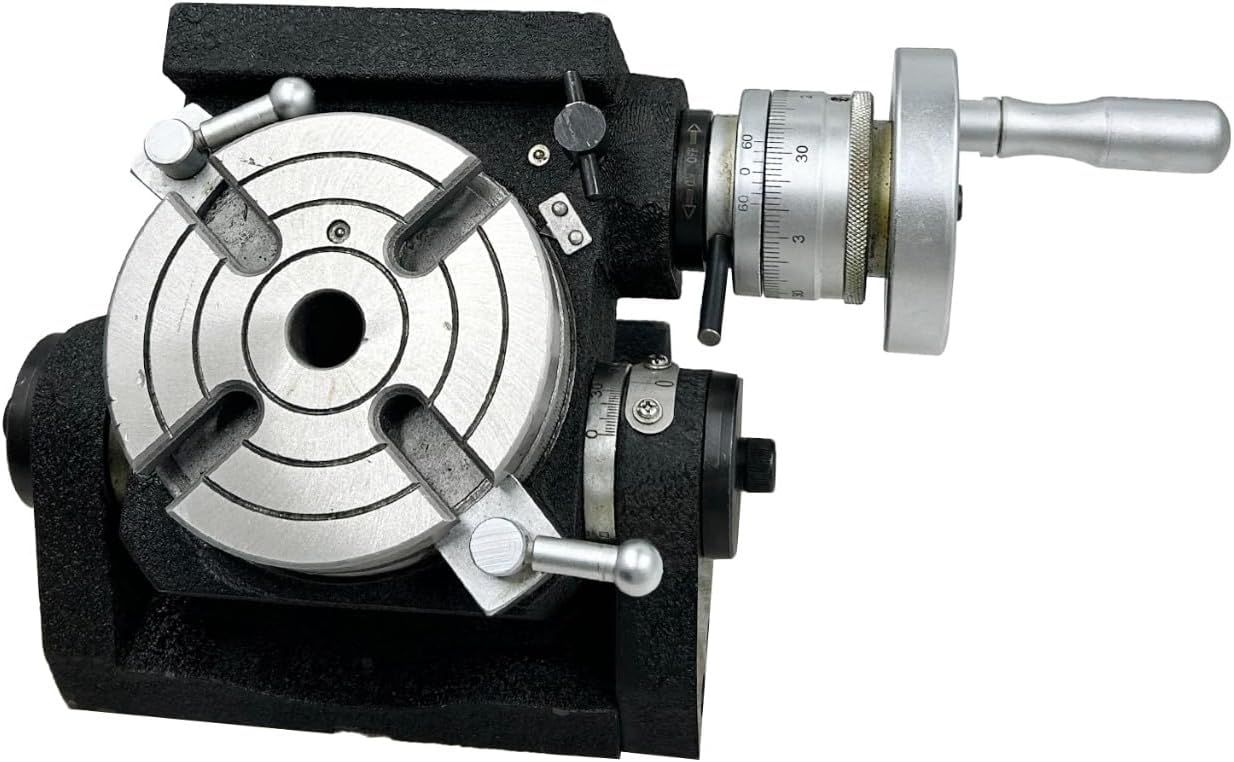

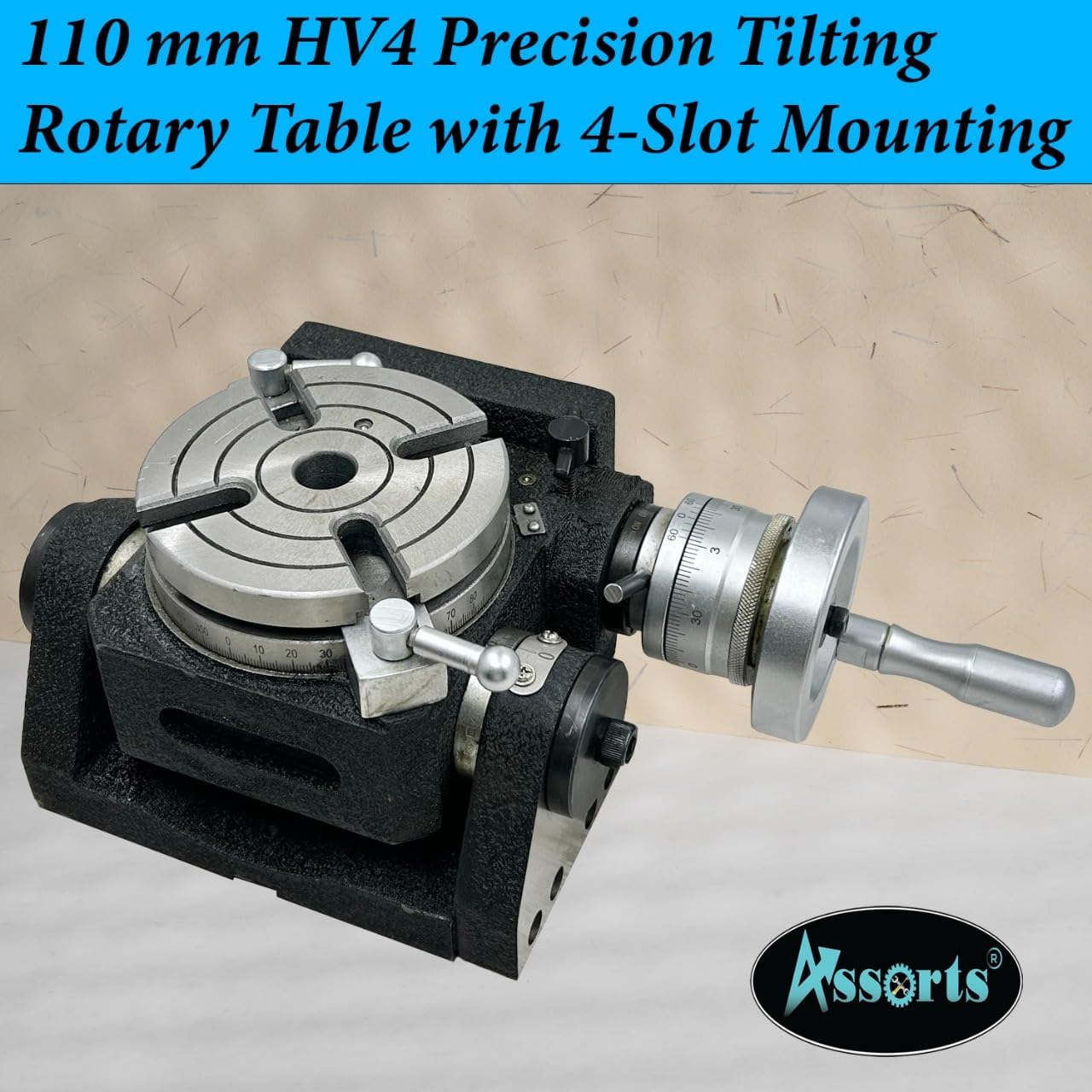

Rotary Table (HV4 (110 mm) Tilting - 4 Slots)

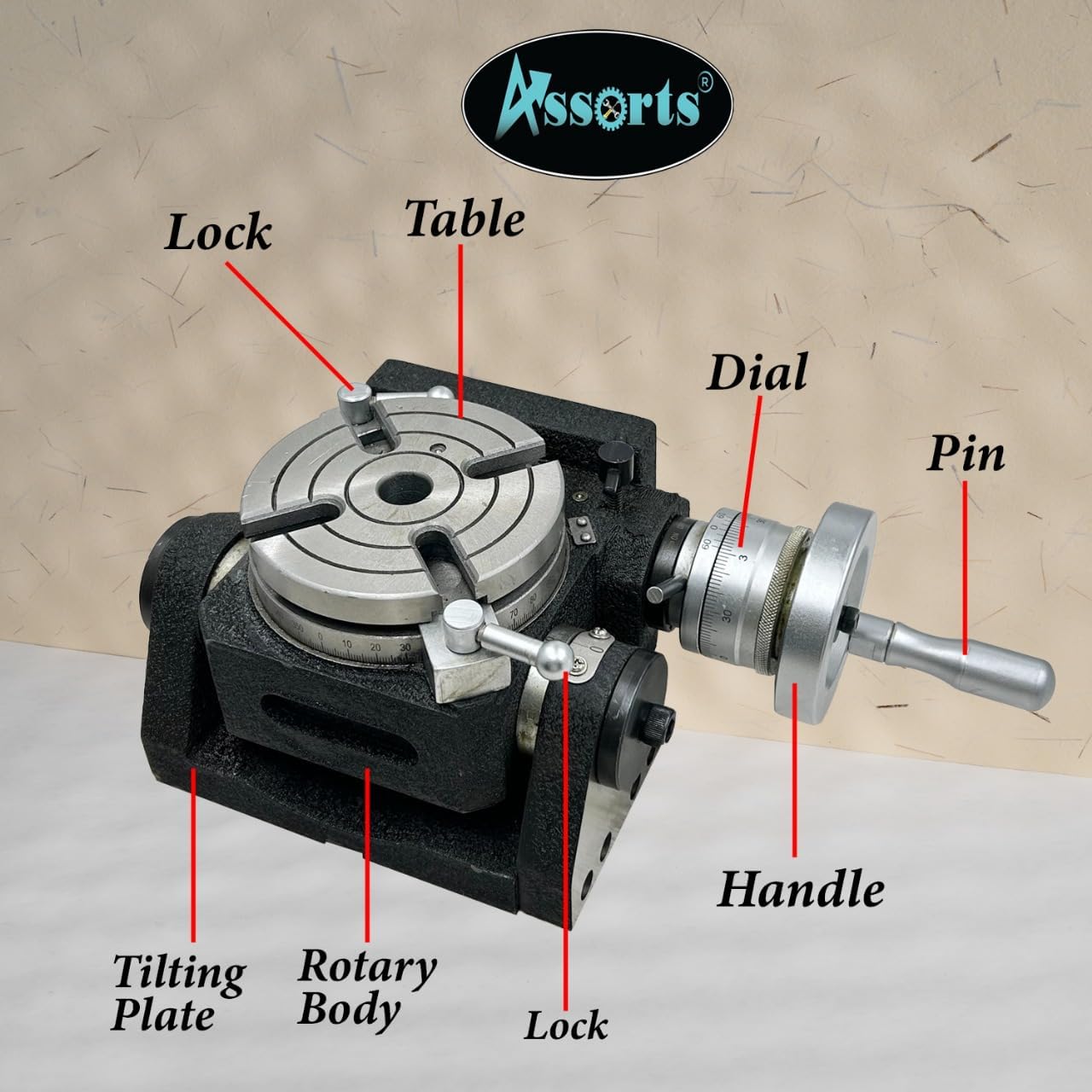

HV4 Tilting Rotary Table – Key Features

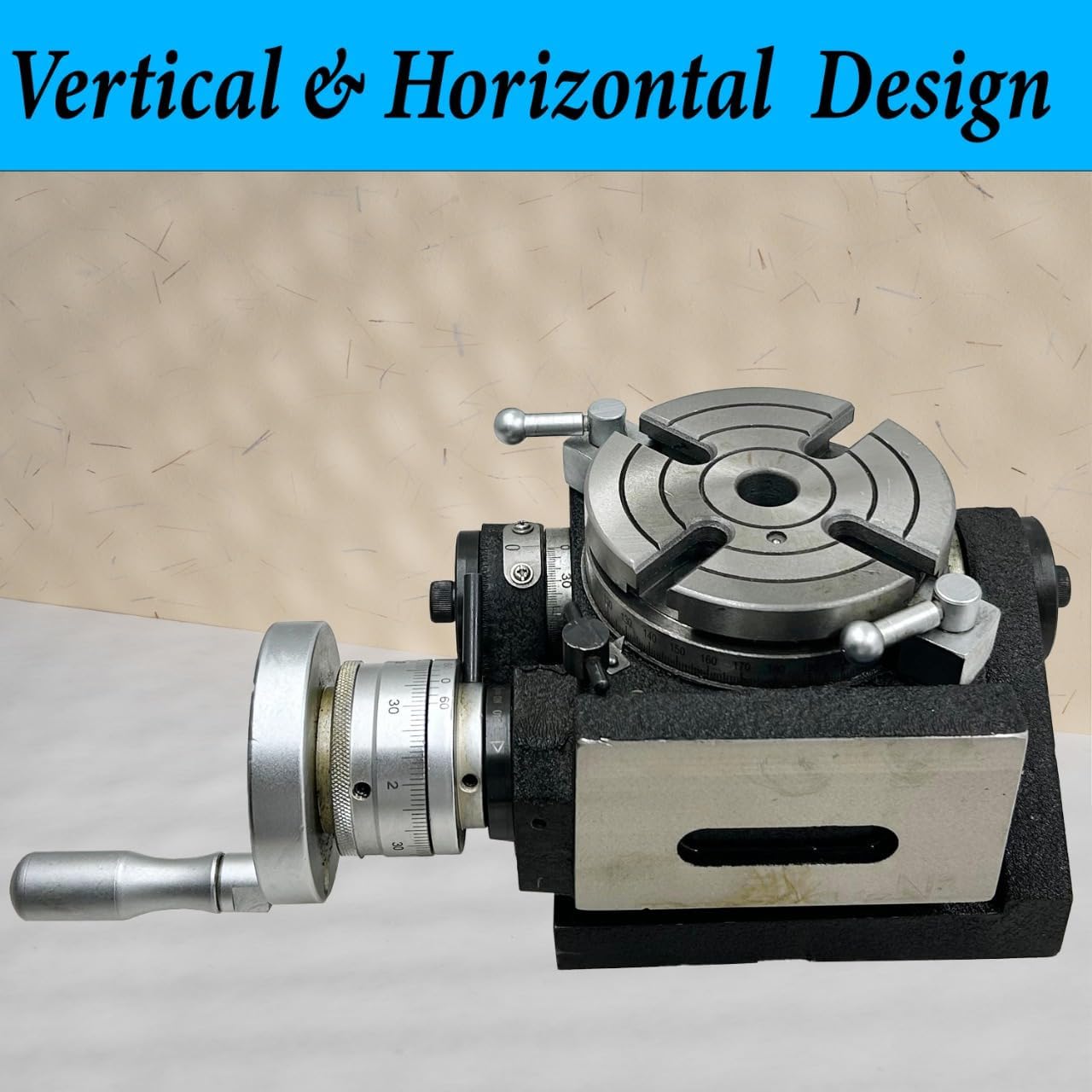

• 110 mm precision rotary table for horizontal & vertical milling
• Tilting range: 0°–90° for versatile machining setups

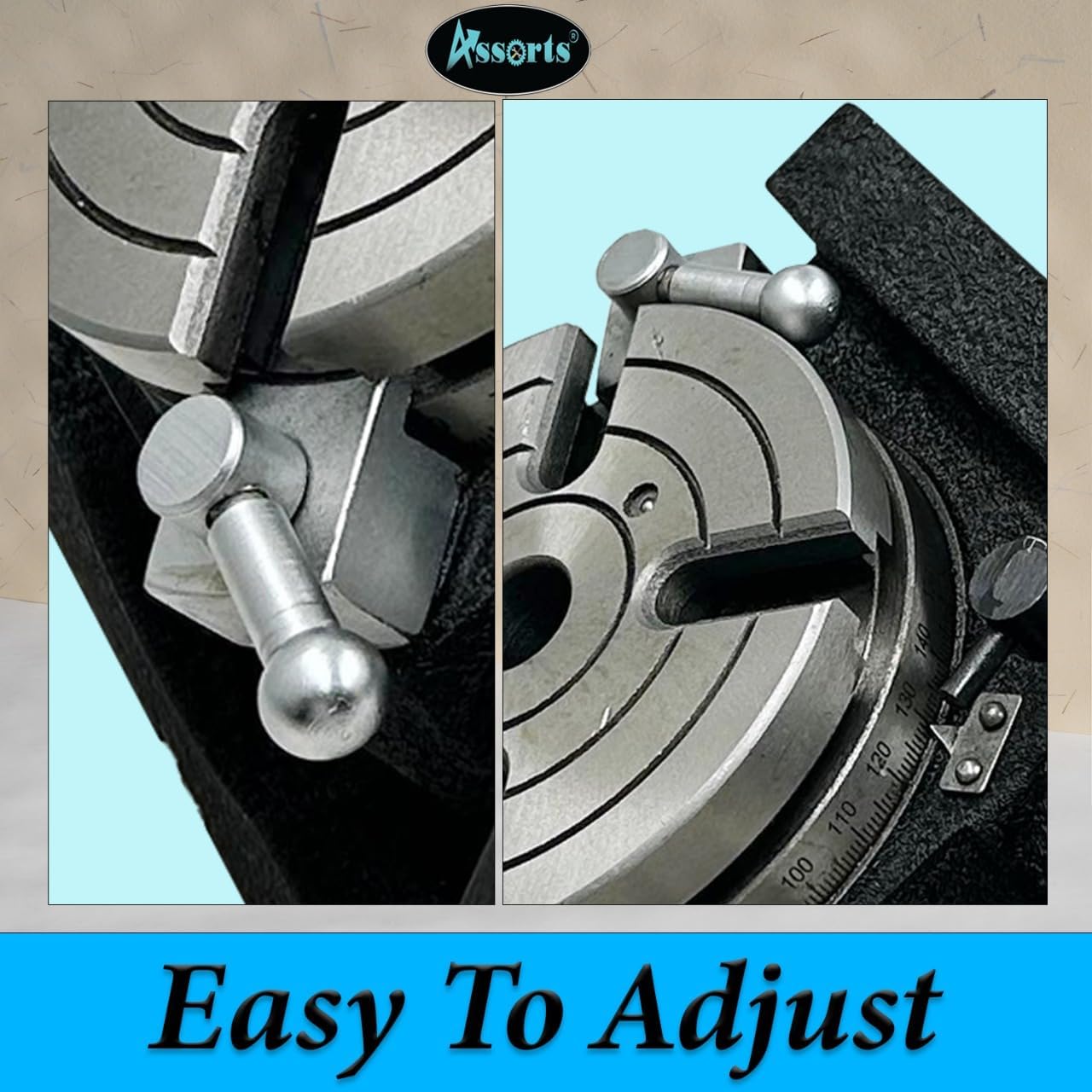

• Positive stops for quick alignment in horizontal & vertical positions
• Dis-engageable handwheel for smooth, free table rotation
• Easy-access lubrication points for worm & table maintenance
• Alloy steel worm with durable cast-iron gear

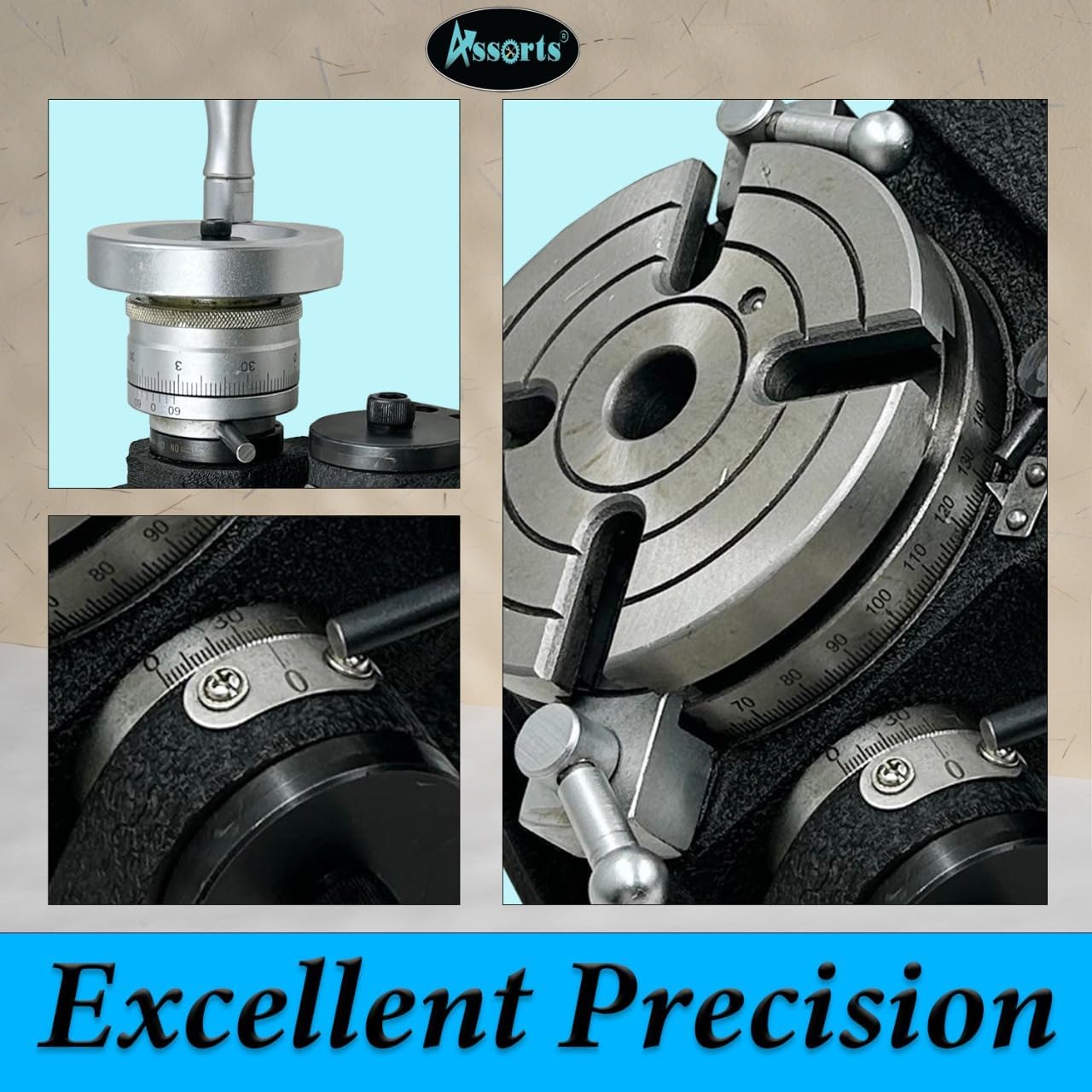

• Micro collar graduated in 1-minute increments for fine adjustments
• Worm-gear ratio: 1:90 (1 handwheel turn = 4° table rotation)

Specifications

• Table Diameter: 110 mm
• Base size: 175 × 45 mm
• T-slot Width: 11 mm
• Height (Horizontal): 120 mm
• Center Height (Vertical): 80 mm
• Center Bore: MT2
