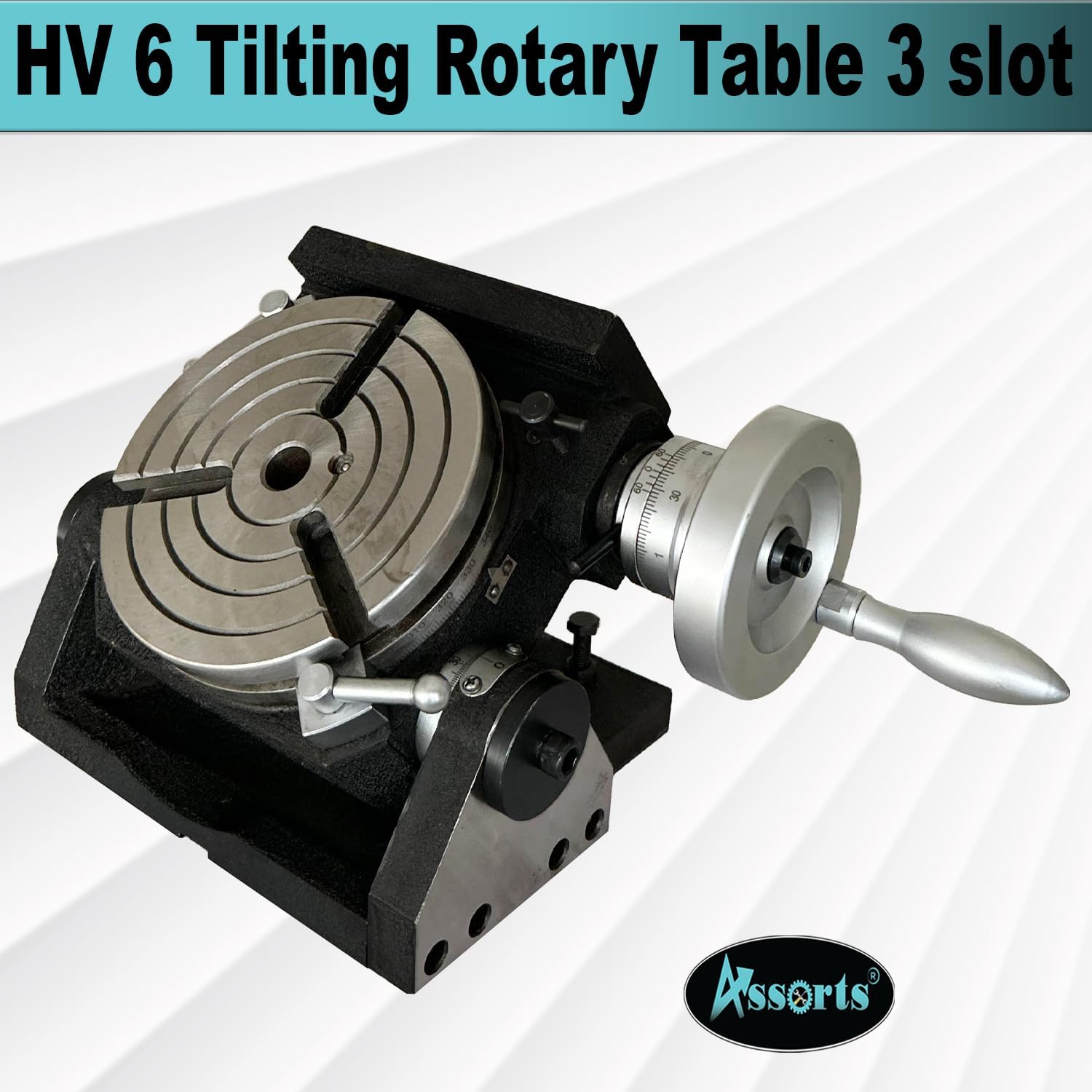

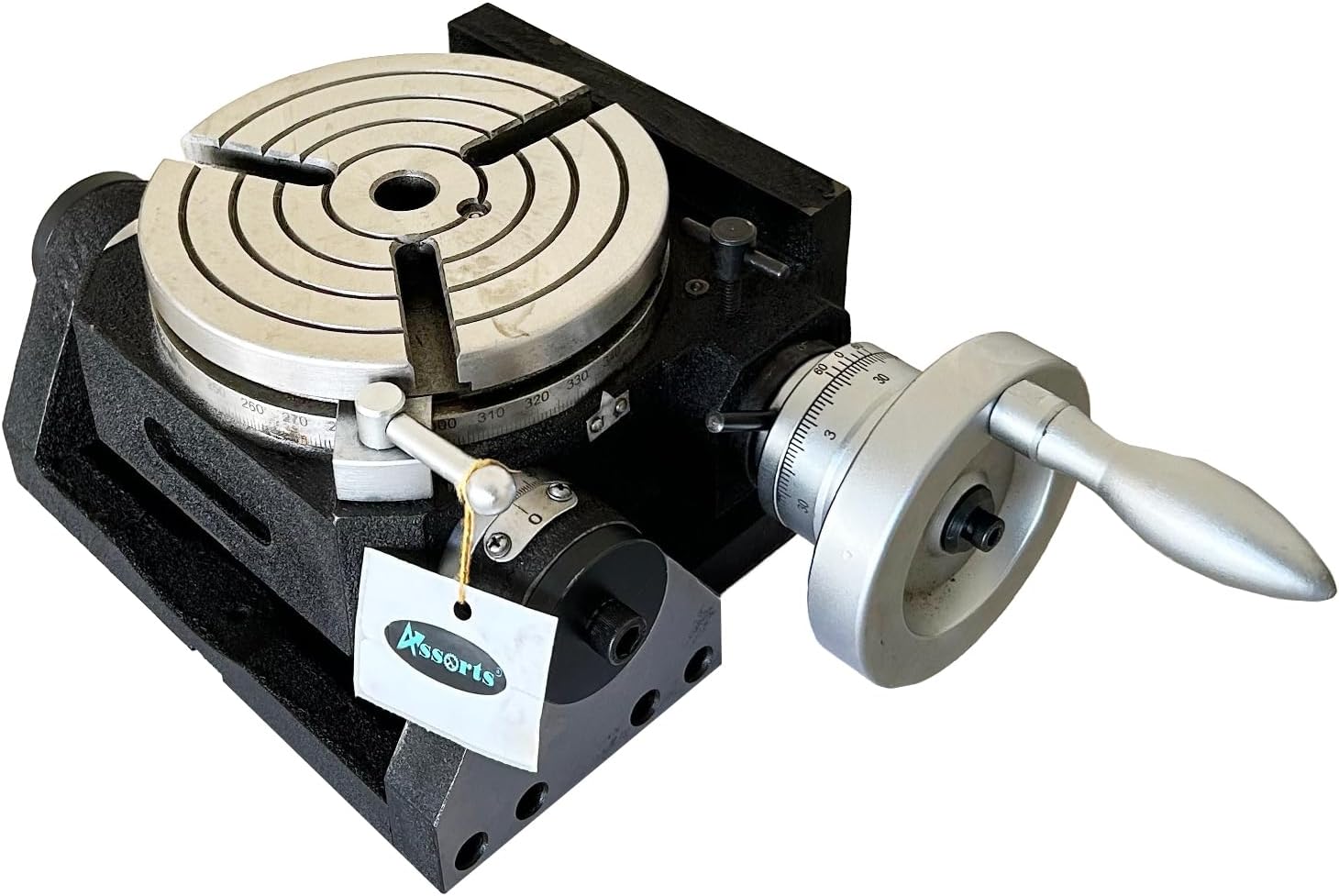

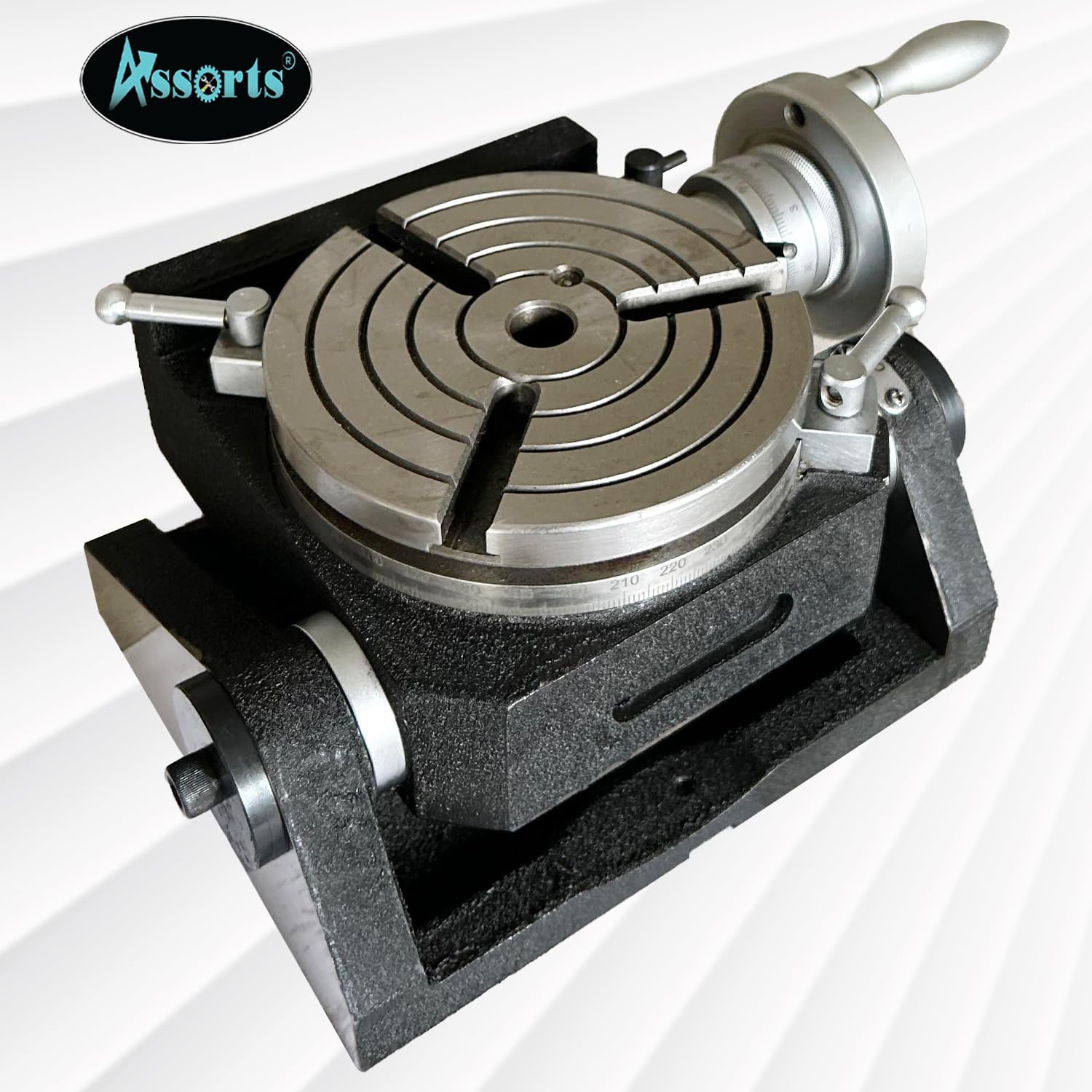

Rotary Table (HV6-3 Slots (6"-150 mm) Tilting)

HV6 Tilting Horizontal & Vertical Rotary Table – 6" (150 mm)

• Table Diameter: 150 mm (6")

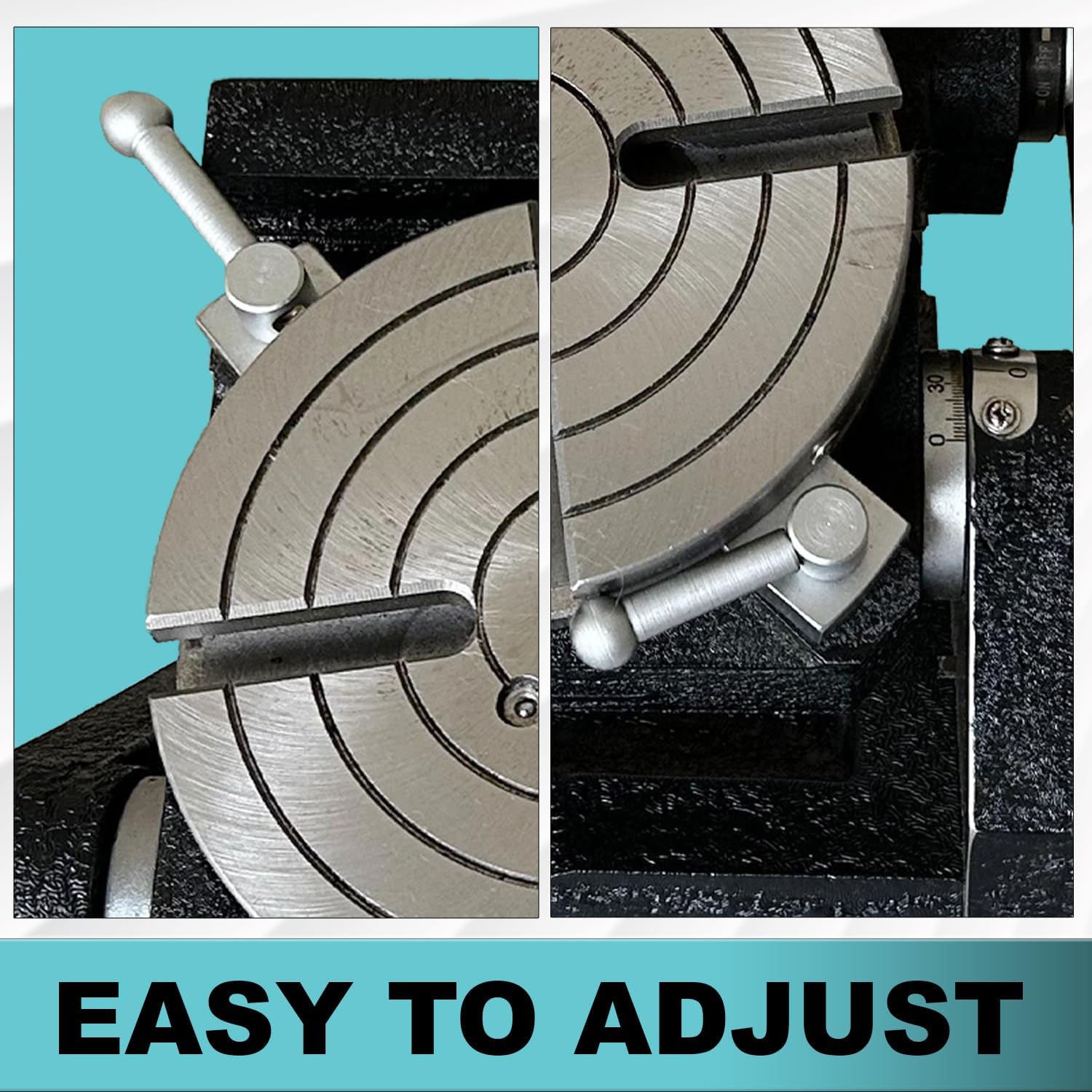

• Tilting Range: 0°–90°, lockable at any working angle
• Gear Ratio: 1:90 — one handwheel turn = 4° table rotation

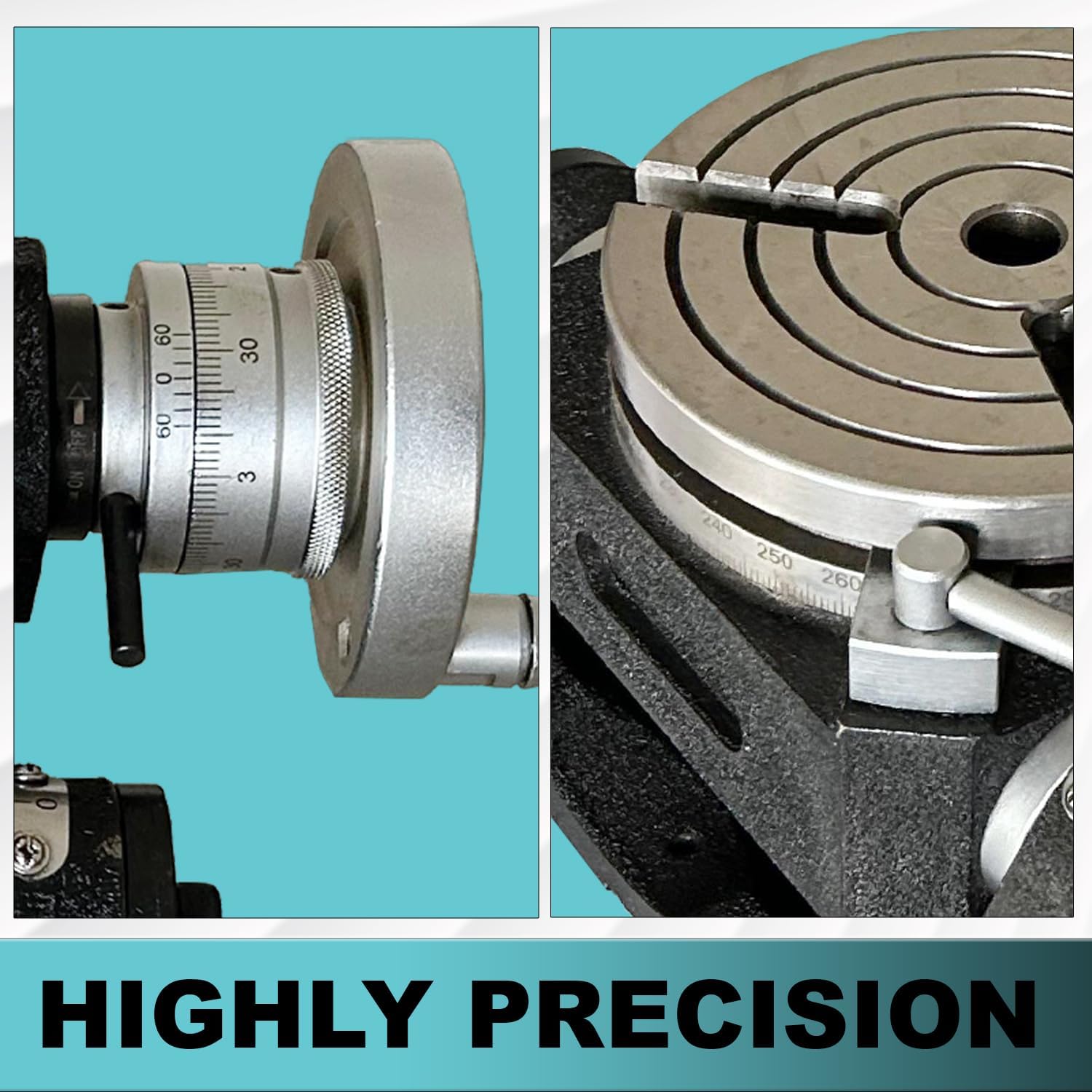

• Handwheel: Dis-engageable for free rotation; micro-collar graduated in 1-minute steps
• Vernier Scale: Calibrated to 10 seconds for fine adjustments
• Graduations: 360° table scale with resettable dial
• Center Bore: MT2
• T-slot Width: 18 mm (bottom) / 11 mm (top)
• Horizontal Height: 132 mm

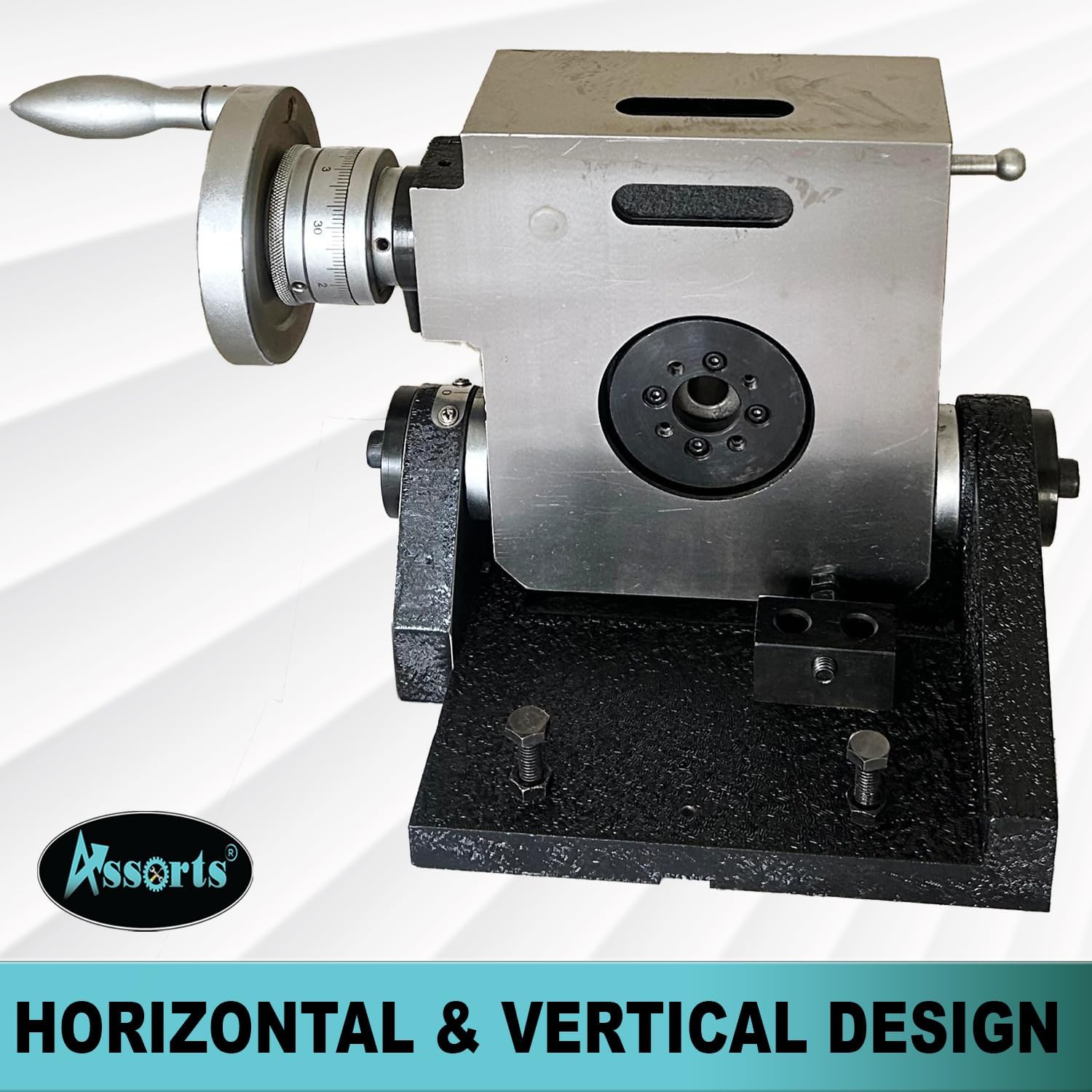

• Center Height (Vertical): 112 mm
• Base Size: 200 × 180 mm

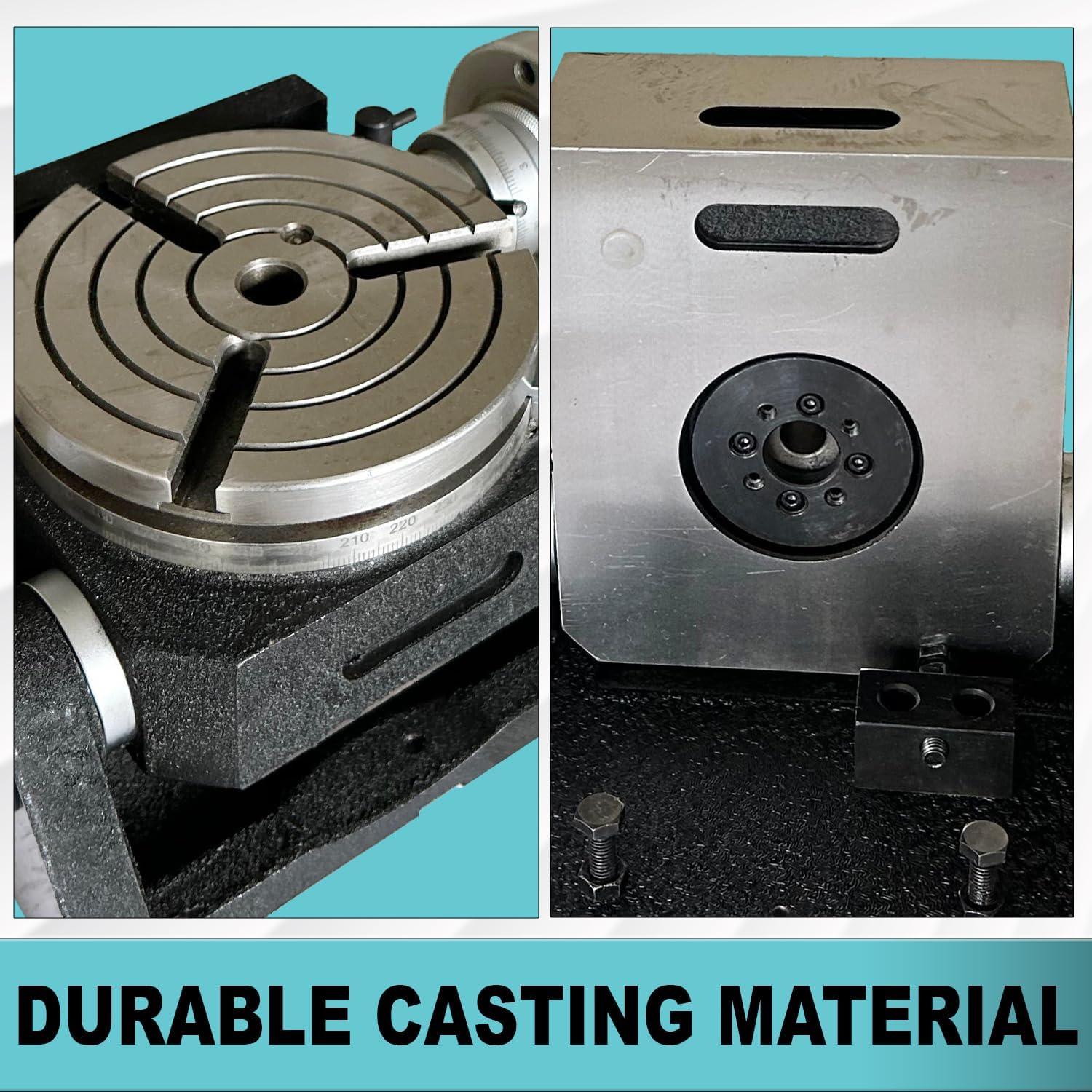

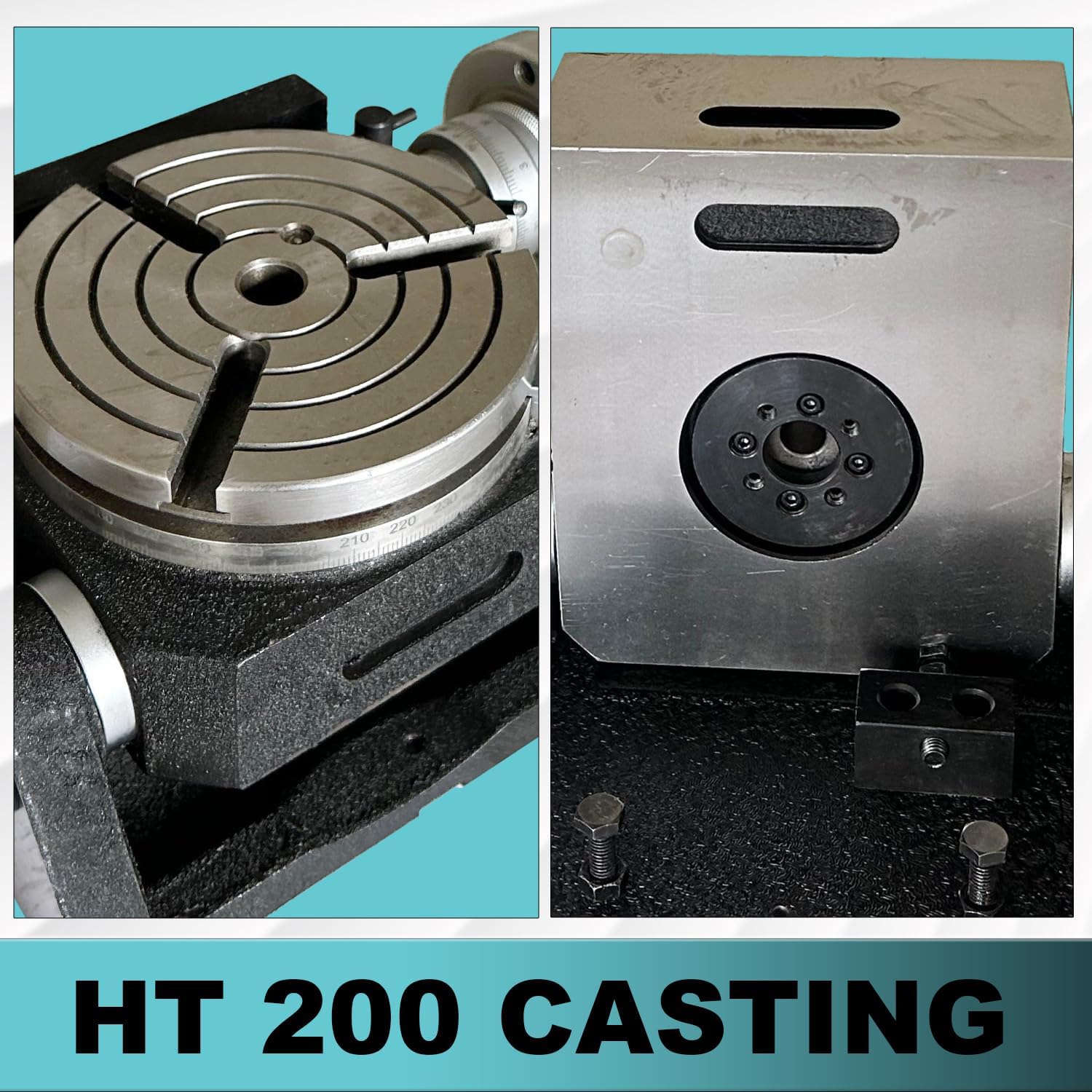

• Construction: High-grade cast iron for rigidity, shock absorption, and heat resistance
• Worm & Gear: Alloy steel worm with durable cast-iron gear
• Lubrication Points: Provided for worm and table rotation
• Applications: Ideal for indexing, circle cutting, milling arcs, drilling patterns, boring, and precision machining
